RS PRO ESD Grounding Wrist Strap & Cord Set With 4 mm Stud

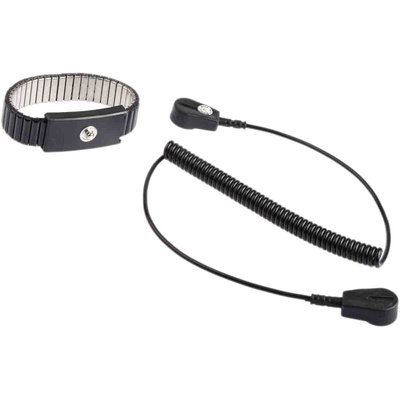

RS PRO grounding wrist strap & cord set

From RS PRO, comes a high-quality grounding wrist strap & cord set. This cost-effective set proves to be an essential solution for grounding the wearer and preventing a build-up of static on their body which protects any electrical equipment that is being handled from being damaged.

Features and benefits:

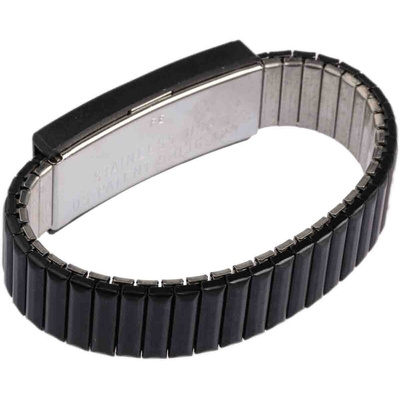

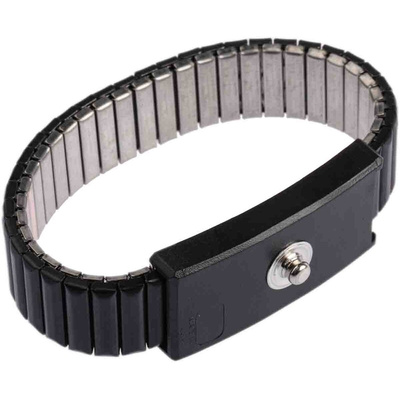

• The adjustable wrist strap and inside links are manufactured with a 300-series stainless steel backplate. Each link is laminated with a sheet of 0.05mm polyphenylsulfone


• The wristband features resistance interior of < 1 x 105 ohms per ANSI/ESD S1.1 and the exterior has a resistance of > 1 x 107 ohms per ANSI/ESD S1.1

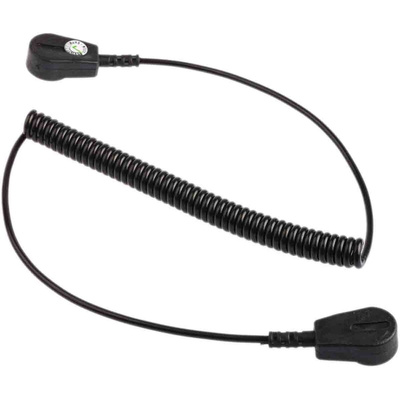

• The coiled cord is manufactured with a 2.5mm polyurethane insulation, a high strength conductor for flexibility and strength


• The cord can withstand 1250 volts DC for at least one minute


• The coiled cord is 1m in length

Application

Anti-static wrist straps have a range of applications such as;

• Computing industry


• Automotive industry


• Electronics industry


• Operating theatres

Why choose RS PRO?

RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.

Standards

Products meet the requirements of EN 61340-5-1 tested per ANSI/ESD S1.1 and IEC 61340-5-1 Clause A.1
