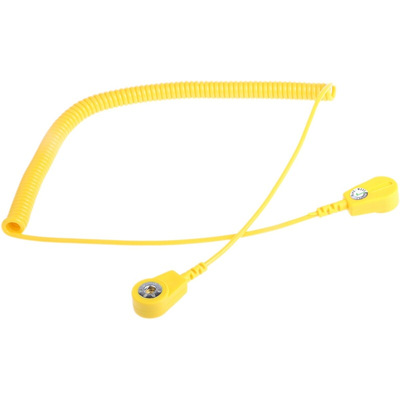

RS PRO ESD Grounding Cord With 10 mm Socket

RS PRO 4 mm, 10 mm Stud ESD Grounding Cord 1 m Length Cord

RS PRO’s ESD (electrostatic discharge) grounding cord is suitable for making secure electrical connections between groundable points and an Electrostatic Protected Area (EPA). It provides greater safety on site for workers and visitors.

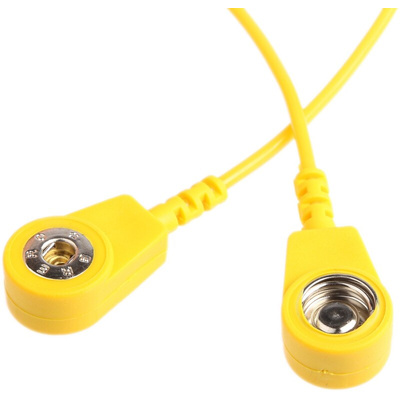

The yellow coiled ground wires come with 2.5 mm polyurethane insulation along with 1 MΩ resistors in each socket end. The grounding wires can withstand up to 1,250 V DC for at least one minute and feature a high-strength conductor for flexibility and strength. When grounded, the cord and its groundable point connection should always be shrouded by insulating material when accessible. The single resistor used in the cord should also be located near the groundable point.

The ESD grounding cord is 1 metre in length with stud sizes of 4 mm and 10 mm. It's reusable and complies with European safety standard EN 61340-5-1 for ESD protection.

Features and Benefits

• Grounding cord
• 1 m in length
• 1 MΩ lead resistance

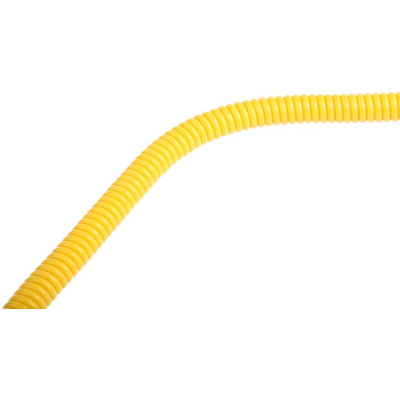

• Coiled cord style
• Yellow colour
• Reusable
• Single wire
• 4 mm and 10 mm stud sizes
• Complies with EN 61340-5-1 European standards for the protection of persons and equipment from electrostatic discharges (ESD) greater than 100 V

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
