DM330021-2, Microchip dsPICDEM MCLV-2 BLDC Motor

dsPICDEM MCLV Development Board

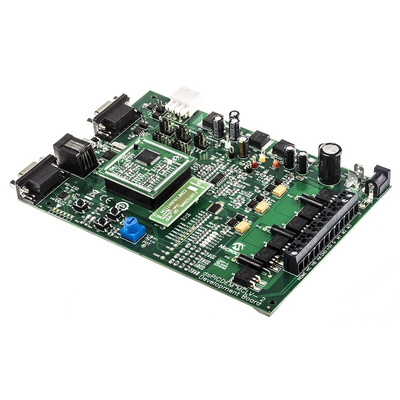

Microchips dsPICDEM MCLV development board is a brilliant evaluator and developer of brushless DC motor and magnet sync motors. This board features a three-phase inverter bridge with a power rating of 48V, great overcurrent protection, plenty of interfaces for a range of protocols and full backwards compatibility with MCLV. This board also allows you to communicate with a PC or external device via CAN, LIN, USB or RS-232.

The dsPICDEM MCLV supports PIC24F, dsPIC33E, PIC24E and dsPIC33F motor families.

Features and Benefits:

• CAN, LIN, UART (USB) and UART (RS-232) communication interfaces


• ICSP and RJ11 connectors from programming DSPIC DSC device


• Full backwards compatibility with MCLV


• Overcurrent protection


• Input/output control switches – LED indicator for PWM outputs


• On-board potentiometer to change speed of motor


• Hall sensor/quadrature encoder interface for sensored motor control

Applications:

The dsPICDEM MCLV board can be used in many applications where a brushless motor or magnet sync motor need to be controlled, such as:

• Power tools


• Sewing machines


• Toys


• Electronic locks


• Low-cost drones

Whats in the box?

• 1x dsPICDEM MCLV-2 Development board


• 1x dsPIC33EP256MC506 Internal OpAmp PIM


• 2x Matrix boards to config the MCLV-2 – Internal & external

Supplied with

dsPIC33FJ32MC204 PIM (MCLV board)
dsPIC33EP256MC506 PIM (MCLV-2 board)

dsPIC® Development Tools

dsPICDEM MCLV-2 Development Board user guide

DM330021-2 - UserGuide
