SRN12630X SRX-SRN12630X, ABB SRX Series 304 Stainless Steel Wall Box, IP66, 1200 mm x 600 mm x 300mm, Настенный шкаф

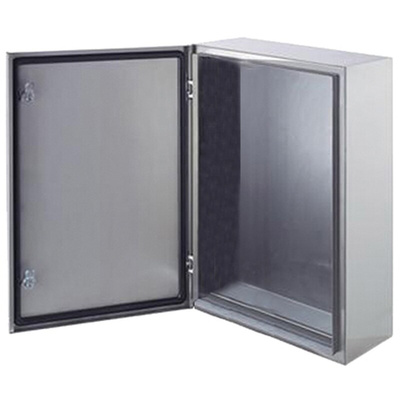

ABB Steel Wall Box, IP66, 600 (W) x 1200 (H) x 300mm (D) - SRX Series - SRN12630X

Use this steel wall box from ABB to protect your electrical components. Constructed from hard-wearing stainless steel, it's resistant to oxidation and corrosion to provide high protection over a long service life. An IP66 rating indicates the unit offers complete protection against dust and strong water jets, meaning it's suitable for harsh industrial environments. Designed with a blind door, it prevents unauthorised individuals from accessing your components to minimise the risk of disruption from tampering.

Features & Benefits

• Dimensions of 600 (W) x 1200 (H) x 300mm (D) provide storage for complex systems
• IK10 rating indicates the box withstands impacts up to 20J, for effective protection in heavy-duty settings
• Support for direct wall-mounting means quick installation
• Door opens up to 120° for easy access

Applications

• Automation systems
• Marine and offshore industries
• Bottling plants
• Electrical switchboards

Can I use this wall box outside?

The unit's high IP66 rating means it's suitable for outdoor use. As it doesn't come with a locking mechanism, you'd need a protected location to mount it if security is a concern.

Supplied with
type":"Supplied with",

A blind door and a galvanised sheet metal internal mounting plate.
