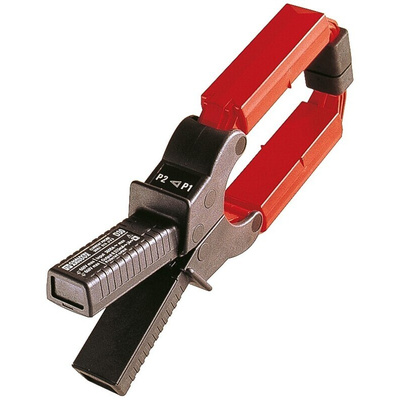

D30N Current clamp for AC current
The D30N current clamp provides true RMS measurement values and faithful signal reproduction. The rectangular jaws can be used to clamp large-diameter cables or busbars.This current clamp may also be used with multimeters, harmonic and power measurement equipment, logging apparatus or other instruments allowing AC current input.
Current calibre: 1 A AC to 2400 A AC (3000 A for temperature < 35°C)
Bandwidth: 30 Hz to 5 kHz
Max. jaw opening: 90 mm
Output: two safety sockets (4 mm)
Standards
IEC 1010-2-032, 600 V category III, pollution degree 2, 300 V category IV pollution degree 2
Supplied with
Operating manual
Техническая спецификация
Current clamps for AC current DN series
