P01120057A, Chauvin Arnoux D38N Current Clamp, AC Adapter

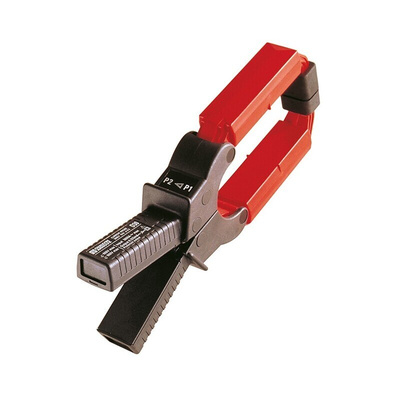

D38N Oscilloscope clamp for AC current

The D38N (insulated AC current probe) offers accurate AC current measurement and a voltage output in mV allowing direct readings on oscilloscopes.A switch with 3 positions on the handle can be used to select the ranges.The wide opening of the jaws means they can be used on cables and small busbars.

Current calibres:
1 A AC to 30 A AC (90 A peak)
1 A AC to 300 A AC (900 A peak)
1 A AC to 2400 A AC (9000 A peak)
(3000 A for temperature < 35°C)
Bandwidth:
10 Hz to 50 kHz (depending on current)
Max. jaw opening: 90 mm
Output: 2 m coaxial lead with insulated BNC plug

Standards

IEC 1010-1 and IEC 1010-2-032, 600 V category III pollution degree 2, 300 V category IV pollution degree 2

Supplied with

Operating manual.

Current clamps for AC current DN series
