Tektronix Oscilloscope Probes

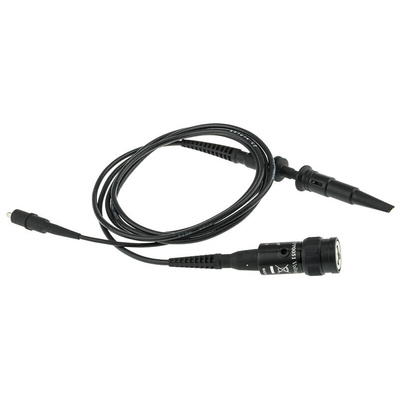

The Tektronix passive voltage oscilloscope probe is for use on BNC oscilloscopes with 1Mohm/20pF input. It has an attenuation of 10X with 10Mohm input resistance.
Note:
All the products in this range are supplied for use with instruments with a permanent earth connection.
Features and Benefits
Bandwidth is DC to 50MHz
Attenuation ratio is 1:10
Input impedance is 10Mohmll12pF
Cable length is 1.3m
Maximum common-mode input voltage is 300KV
Maximum Input voltage is 300VRMS CAT II
Wide compensation ranges between 15pF and 25pF)
Applications
Relative low frequency measurements
Low frequency computer and telecom measurements
Power supplies
Low frequency amplifiers
Certifications
UL61010-031 approved
2007, CAN/CSA C22.2 No. 61010-031-07 certified
IEC61010-031
IEC 61010-031/A1:2008
CAT II 300V
TBS1000B Series Digital Storage OscilloscopesTPP0051 Passive 10X Voltage Probe| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
