DPI620G-FF, Druck Genii Multi Function Calibrator, 20mA, 30V 直流, 300V ac, - UKAS Calibration, Многофункциональный калибратор

8003016
Номер производителя: DPI620G-FFПроизводитель: Druck
Цена за шт.
3143700.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Druck DPI 620 Genii Advanced Modular Calibrator

Providing multi-functionality is just one of the many great features of the Druck DPI 620 Genii series. The advanced modular calibrator and HART/Fieldbus communicator is comprised of just four system components. Each one of these components performs duties that previously required a multitude of different systems. Some components of the system that we have available are:
• DPI 620G (800-3013) - Genii Advanced Modular Calibrator with HART Communicator
• DPI 620G-FF (800-3016) - Genii Advanced Modular Calibrator with HART/Fieldbus Communicator
• DPI 620G-L (815-9995) - Genii Advanced Modular Calibrator
• MC 620 (541-116) - Interchangeable Pressure Module
• PM 620 (541-100) - Pressure Module Carrier

Features & Benefits

• Multifunction capabilities, electrical frequency, temperature and pressure
• Complete HART communicator
• Optional Fieldbus communicator
• Modular re-arrangeable and expandable concept
• Each individual component can be used as a stand-alone instrument
• Allows for significant inventory reductions
• Improves operator safety and simplifies training
• Reduces cost ownership
• Provides simultaneous measurement and source capabilities for the set-up, testing and calibration of most types of process instruments. (Transmitters, transducers, gauges/indicators, switched, proximity detectors, counters, RTDs, thermocouple, and valve positioners

The DPI 620 Genii series combines an advanced multi-function calibrator and HART/Fieldbus communicator with world-class pressure measurement generation, now available with a new and improved design:

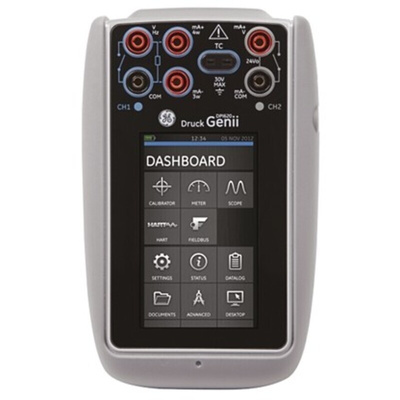

• Smartphone technology, touch display and UI (user interface) which helps support gestures and swipes with a flatter menu structure
• A new digital platform and modems which support HART and Fieldbus applications
• A new dashboard, allowing a user to promptly launch applications
• The new TASK menu allows for single touch configuration, useful for common devices such as pressure and temperature transmitters, transducers, switches and valve positioners

Did you know?

All first-generation DPI 620 and the new Genii systems components are conveniently, fully interchangeable. This includes pressure stations, pressure modules and all other associated accessories.

What comes with the kit?

Please note that the contents of the kit is based on the Genii module that you acquire and will vary, the below contents come with the any of the series modules as standard.
• Probe
• Test leads
• Calibration certificate
• Quick reference guide

Техническая спецификация
pdfDPI 620 Genii Data Sheet
Вес:
575гр
Высота:
42мм
Длина:
183мм
Измерение максимального напряжения:
30V 直流, 300V ac
Источник питания:
Батарея
Калибровка:
UKAS
Максимальное измерение давления:
1000бар
Максимальный ток измерения:
20мА
Модель р:
Genii
Рабочая температура - максимальная:
50°C
Рабочая температура - минимальная:
-10°C
Тип батареи:
Ширина:
114мм
