0027960, Lapp ÖLFLEX SERVO FD Control Cable, 4+2 Cores, 2.5mm²+1.5mm², Screened, 50m, Orange PUR Sheath, 15 AWG, Кабель

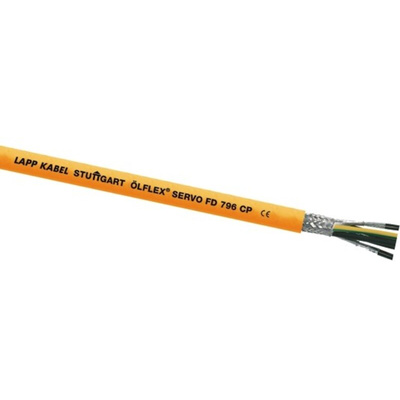

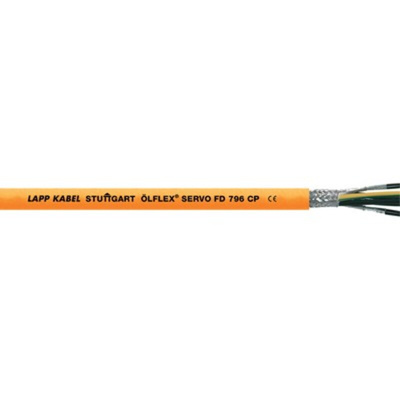

Ölflex Servo 796CP

The Ölflex Servo 796CP cable allows much faster speed and accelerations which increases the economic efficiency of machines and is also slimmer and space saving. Ideal for use with servomotor drive systems from leading manufacturers. The cables modified design of the control core pairs means that the longitudinal voltage drop is lower. It also permits considerably higher operating voltages in the auxiliary circuits

Features and Benefits

• Extra-fine wire strand made of bare copper wires (class 6)
• Core insulation: polypropylene (PP)
• Individual design depending on the item: power cores with or without one pair, or with two control core pairs, in pairs, with screening, twisted together in short lay lengths
• Non-woven wrapping
• Tinned-copper braiding
• PUR outer sheath, orange (RAL 2003)
• Dynamic performance in power chains: Acceleration up to 50 m/s². Travel speeds up to 5 m/s. Travel distances up to 100 m.
• Low-capacitance design: this may result in lower EMI interference, depending on the drive’s electrical operating conditions.
• Halogen-free materials
• Flame retardancy: UL/CSA

Applications

• Connecting cable between servo controller and motor
• In power chains or moving machine parts
• For use in assembling and pick-and-place machinery
• Wet areas of machine tools and transfer lines
• Assembly lines, production lines
• All kinds of machines
• Dynamic motion sequences

Standards

UL, CSA, VW-1, FT1, EN60332-1-2, VDE

LAPP Control Cable, PUR Sheath Material, 13.4mm Outer Diameter - ÖLFLEX SERVO FD Series - 0027960

Safely run operating signals between your servo system and electric motor with this control cable from LAPP. It's designed for use with a rotating machine component to transmit increased speed and acceleration to your equipment. The conductors come with a robust copper braid screen that shields the signals from EMI. Thanks to the tough PUR outer jacket, the cable stands up to wear, abrasion and chemicals.

Features & Benefits

• PP core insulation for protection against electrical hazards
• Copper wires are highly conductive for reliable current transmissions

Applications

• HVAC systems
• Packaging facilities
• Assembly plants

What's the speed and acceleration capacity of this cable?

When used in a power chain, this cable can transmit signals for travel speeds of up to 5m/s and acceleration of up to 50m/s².
