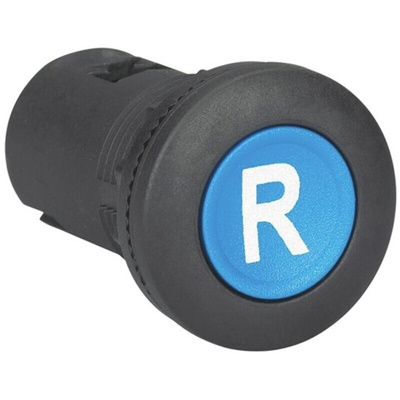

800FP-R611, Allen Bradley 800F Series Blue Reset Push Button Head, 22mm Cutout, IP65

800FP Reset Push Buttons

The 800FP reset function push button from Allen Bradley can be used as a mechanical and/or electrical reset operator. The operator clearly marked with a with 'R' on a blue background can accept up to 4 single contact blocks or two double contact blocks with no contacts are allowed in the centre position.

Mechanical and/or electrical reset
Blue push button cap with clear white ’R’ marking
Accepts up to 4 single contact blocks

Allen Bradley Push Button Head, 22.5mm Cutout Diameter, Blue - 800FP-R611

Install this push button head from Rockwell Automation's Allen Bradley range in the reset operator of your industrial equipment. As it's made from engineering-grade thermoplastic, it's robust and resistant to impact, chemicals and high temperatures, meaning you can use it in harsh work areas. To ensure correct use, an 'R' on the unit's 22.5mm-wide blue face clearly indicates that it's designed for a reset function, which re-activates mechanical or electrical machinery that has stopped. As this device can accept up to 4 single-contact blocks or 2 double-contact blocks, it's versatile and suitable for various electrical setups.

• 22mm coutout diameter for simple installation on a standard control panel
• Mechanical design life of 10 million cycles, so it's highly reliable
• IP65 rating indicates protection against dust and powerful water jets

Standards and Certifications

• UL
• UR
• CSA
• CCC
• CE

Can I use this unit in demanding conditions?

Yes. In environments with a temperature range between -25°C and +60°C, this push button head has a maximum operating humidity level of 95% RH, indicating that it's suitable for use in demanding conditions.

The 800FP range from Allen Bradley is a complete array of plastic controls from the 800F 22.5 mm industrial push button series. This range of push buttons and indicators are manufactured from engineering grade thermoplastics to provide a high degree of robustness for use in a wide variety of applications with in the automation and control market.

Reset Operators Data Sheet
