RS PRO, Plug Cable Mount TNC Connector, 50Ω, Crimp Termination, Straight Body, Разъем

Reverse Straight Plug (crimp)

The reverse polarity version of TNC connector swaps the dielectric and contact configuration of the male with the female

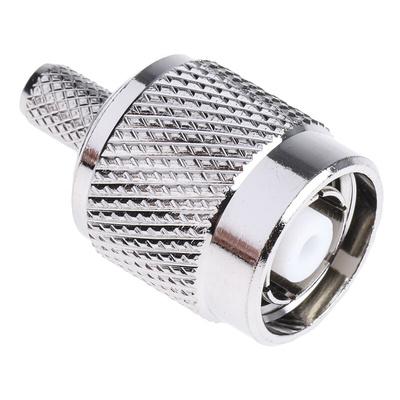

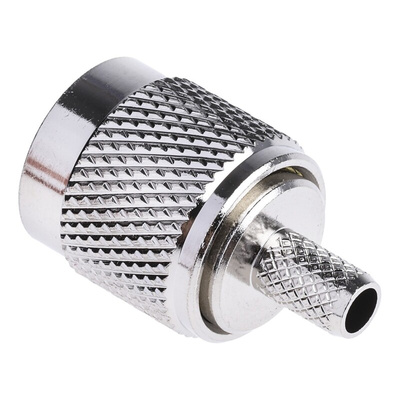

RS PRO 50Ω Straight Cable Mount TNC Connector, Plug

This reverse polarity male TNC connector from the RS PRO range is a miniature radio frequency (RF) connector used for joining coax cables together.

Coax cables, also known as coaxial cables, are used to convey data. When paired with its corresponding female connector, this straight cable mount TNC receptacle can be used to connect two coax cables, creating a secure line of transmission.

TNC connectors share most of their design with BNC connectors, but with a threaded screw-type mechanism instead of a bayonet. This provides a more secure, reliable connection that can work at higher frequencies and withstand greater levels of vibration. To terminate, simply crimp the coaxial connector onto the cable with a crimping tool.

This is a reverse polarity connector, which means it has a female-threaded receptacle rather than a male centre pin. This is simply to prevent accidental male-to-male connections, which can cause signal degradation.

Features and Benefits

• Straight body TNC connector
• Cable mounting
• Characteristic impedance of 50 Ω
• Designed to be crimped onto cables
• Reverse polarity to prevent incompatible connections
• Nickel-plated body with gold-plated contacts

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Nickel Plated

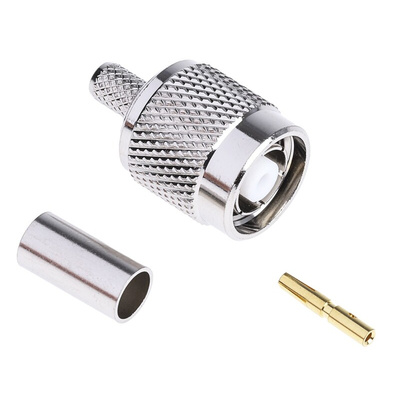

Brass bodied TNC connectors with PTFE insulators and gold plated contacts.

Bulk kit containing 100 RG58 straight plugs 546-5200 is available, making production and servicing much easier. Component parts are neatly stored in a sturdy dispensing case

Dimensional Drawing

RS Pro Datasheet
