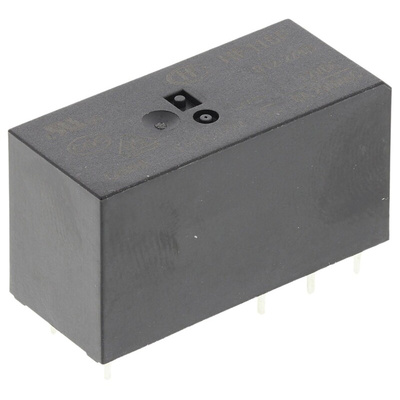

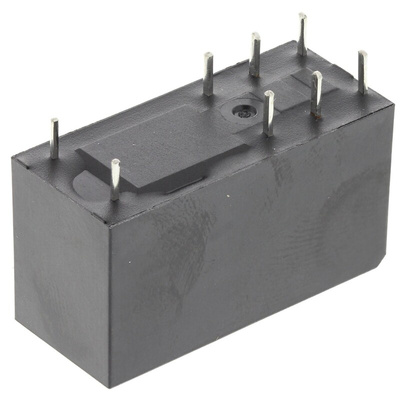

RS PRO PCB Mount Power Relay, 12V dc Coil, 8A Switching Current, DPDT, Реле

RS PRO, 12 V DC Coil Non-Latching Relay DPDT, 8 A Switching Current PCB Mounting, 2 Pole

Operate your electrical circuit with this non-latching relay DPDT (double pole double throw) from RS PRO. The switch flips back to its original position after use, so it's well-suited to push-button applications such as keyboards and micro-controller input buttons.
For speedy installation, you can mount this component onto a circuit board. It has a lifespan of 100,000 electrical operations and 100 million manual operations, so it's built to last.

Features and Benefits

• Power application
• Coil power of 400 mW
• Coil resistance of 360 Ω
• Coil voltage of 12 V DC
• DPDT contact configuration
• Silver alloy contact material
• Depth of 12.7 mm
• Height of 15.7 mm
• Isolation coil to contact of 5 kV AC
• Length of 29 mm
• Life of 100000 (Electrical) Operations, 100000000 (Mechanical) Operations
• Minimum operating temperature of -40°C
• Maximum operating temperature of +85°C
• Maximum switching power (AC) of 2 kVA
• Maximum switching voltage of 440 V AC
• Maximum switching voltage of 300 V DC
• PCB mounting type
• Two poles
• Miniature power relay switching classification
• Flux proof special features
• Standards met include CQC 02001001951, RoHS (Restriction of Hazardous Substances), UL E134517, VDE 116934
• Switching current of 8 A
• Through-hole terminal type
