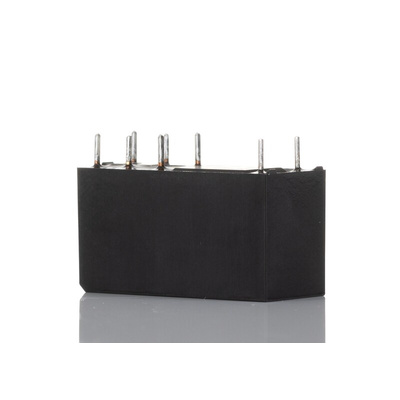

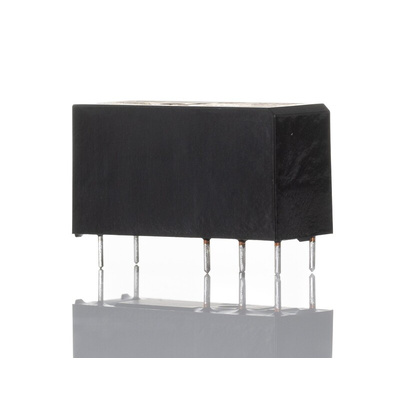

RS PRO PCB Mount Power Relay, 24V dc Coil, 16A Switching Current, SPDT, Реле

RS PRO High Inrush SPDT Non-Latching Signal Relay (24V dc)

A reliable miniature non latching relay with a Single Pole Double Throw (SPDT) configuration designed to return to its original position after use. Designed for high inrush capability to prevent damage caused by excessive current when in operation.
This 16A signal relay is designed for easy PCB mounting and ideal for boards where space is at a premium due to its miniature and low profile design with dimensions of only 29 x 12.7 x 15.7mm.
Plastic sealed and flux proofed for excellent moisture resistance the non latching miniature relay is suitable for use in a wide range of devices and ideal for use in push button applications.

Features and Benefits

• Non-latching signal relay


• High inrush capability of TV-5 80A @ 125V ac


• Creepage of only 10mm


• Miniature size of 29 x 12.7 x 15.7mm


• PCB mount


• Maximum switching voltage of 24Vdc


• Maximum switching current of 16A


• Contact rating of 250V ac


• Dielectric strength of 5kV


• Vibration resistance of 10Hz to 150Hz

Standards and Approvals: IEC 60335-1, UL, CUL, CQC, VDE, RoHS compliant

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS Pro Datasheet
