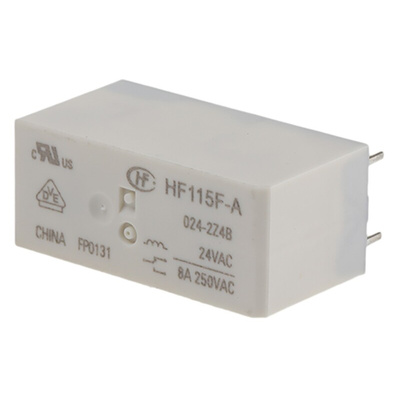

RS PRO PCB Mount Power Relay, 24V ac Coil, 8A Switching Current, DPDT, Реле

RS PRO 24 V AC Coil Non-Latching Relay DPDT, 8 A Switching Current PCB Mounting, 2 Pole

Need a reliable way to operate your electrical circuit? Choose this non-latching DPDT (double pole double throw) relay from RS PRO. It's ideal for push-button applications such as micro-controller input buttons and keyboards, as the switch returns to its original position after use.


You can mount this part onto a circuit board for quick installation. Thanks to its lifespan of one million mechanical operations and 50,000 electrical operations, it's highly durable.

Features and Benefits

• Power application


• Coil power of 750 mW


• Coil resistance of 350 Ω


• Coil voltage of 24 V AC


• DPDT contact configuration


• Silver alloy contact material


• Depth of 12.7 mm


• Height of 15.7 mm


• Isolation coil to contact of 5 kV AC


• Length of 29 mm


• Life of 1,000,000 (Mechanical) Operations, 50,000 (Electrical) Operations


• Minimum operating temperature of -40°C


• Maximum operating temperature of +70°C


• Maximum switching power (AC) of 2 kVA


• Maximum switching voltage of 440 V AC


• Maximum switching voltage of 300 V DC


• PCB mounting type


• Two poles


• Miniature power relay switching classification


• Standards met include CQC 02001001951, RoHS (Restriction of Hazardous Substances), UL E134517 and VDE 116934


• Switching current of 8 A


• Through-hole terminal type

RS Pro Datasheet
