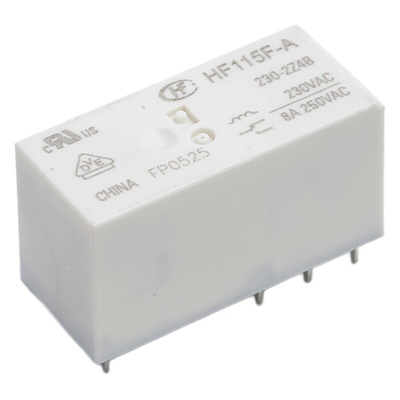

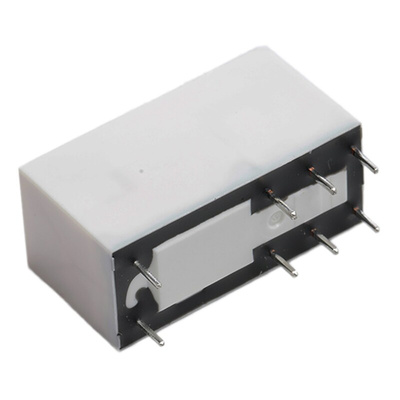

RS PRO PCB Mount Power Relay, 230V ac Coil, 8A Switching Current, DPDT, Реле

RS PRO 230 V AC Coil Non-Latching Relay DPDT, 8 A Switching Current PCB Mounting, 2 Pole

Use this RS PRO non-latching DPDT (double pole double throw) relay to reliably operate your electrical circuit. It's frequently used in push-button applications, including keyboards and micro-controller input buttons, as the switch sets itself back to its original position after use.


This part has a lifespan of 50,000 electrical operations and 1,000,000 mechanical operations, so it's designed to last. You can mount it onto a circuit board for ease of installation.

Features and Benefits

• Power application


• Coil power of 750 mW


• Coil resistance of 32.5 kΩ


• Coil voltage of 230 V AC


• DPDT contact configuration


• Silver alloy contact material


• Depth of 12.7 mm


• Height of 15.7 mm


• Isolation coil to contact of 5 kV AC


• Length of 29 mm


• Life of 1,000,000 (Mechanical) Operations, 50,000 (Electrical) Operations


• Minimum operating temperature of -40°C


• Maximum operating temperature of +70°C


• Maximum switching power (AC) of 2 kVA


• Maximum switching voltage of 440 V AC


• Maximum switching voltage of 300 V DC


• PCB mounting type


• Two poles


• Miniature power relay switching classification


• Standards met include CQC 02001001951, RoHS (Restriction of Hazardous Substances), UL E134517 and VDE 116934


• Switching current of 8 A


• Through-hole terminal type
