E5DC-RX2ASM-000, Omron E5DC DIN Rail PID Temperature Controller, 22.5mm, 2 Output Relay, 100 → 240 V ac Supply Voltage, Регулятор температуры

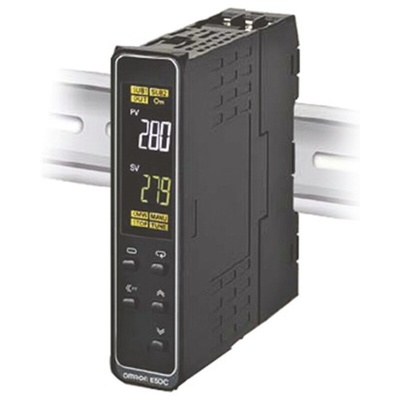

Omron Temperature Controller

The Omron E5DC series temperature controller has a supply voltage rating ranging from 100VAC to 240VAC. This high precision controller has a width of 22.5mm and a length of 85mm. It has one relay output and two auxiliary outputs (one common). The controller gives the best performance, easy setup and outstanding visibility of the white LCD display.

Features and Benefits

A white PV display (height: 8.5mm) is easy to read when setting up, checking alarms and making settings in a control panel
DIN rail mount
Easy connections to a PLC with program less communications
High-speed sampling at 50ms for applications with high-speed temperature increases
Removable terminal block for easy mounting and replacement
Removable terminal block for easy replacement to simplify maintenance
Screw terminal (main unit and terminal unit together)
Set up the controller without wiring the power supply by connecting to the computer with a communications conversion cable (sold separately)
Setup is easy with the CX-Thermo (sold separately)
Useful alarm and diagnosis functions for secure operation

Certifications

IP00 rated
IP20 rated
Overvoltage category II
Pollution degree 2 (EN/IEC/UL 61010-1)

Digital Temperature Controller Instruction Sheet

Datasheet
