Aim-TTi TG2511A Function Generator, 1μHz Min, 25MHz Max, FM Modulation, Variable Sweep - RS Calibration, Генератор функций

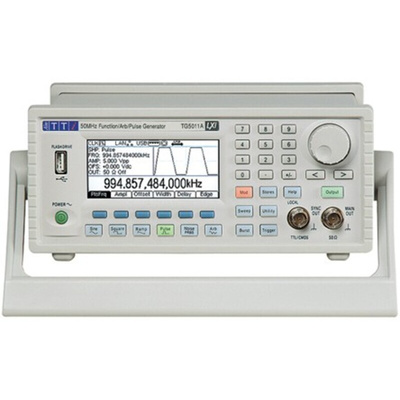

Aim-TTi Advanced Single Channel Function/Arbitrary/Pulse Generators TG5011A, TG2511A

The Aim-TTi TG5011A and TG2511A are state-of-the-art single channel DDS-based function generators. The 50MHz TG5011A offers high bandwidth and sampling speed, which enables it to significantly outperform many generators in its price range. The 25MHz TG2511A incorporates a similar feature set while offering a still lower cost to users with lower frequency requirements.

0.001mHz to 50MHz (TG5011A) or25MHz (TG2511A) range, 14 digits or 1μHz resolution
20mV to 20V pk-pk output from 50Ω, available over the full frequency range - multi-function aux-out
True pulse generator with variable delay and variable rise/fall
Arbitrary waveforms of up to 128K points at up to 125MS/s
Standard waveforms include sine, square, ramp, pulse, PRBS, sin(x)/x, noise, exponential, logarithmic
Waveform storage and file transfers using USB flash drives
Large graphic LCD with simultaneous text and waveform display
Comprehensive internal and external digital modulations including AM, FM, PM, PWM, FSK, BSPK, Sum, PRBS
Waveform Manager Plus for Windows editing software included
Programmable via USB and LAN (LXI) interfaces
Storage for multiple instrument set-ups in non-volatile memory
Compact half-rack 2U casing with protective buffers and handle

TG2511A, TG2512A, TG5011A, TG5012A Advanced Function/Arbitrary/Pulse Generators Data Sheet
