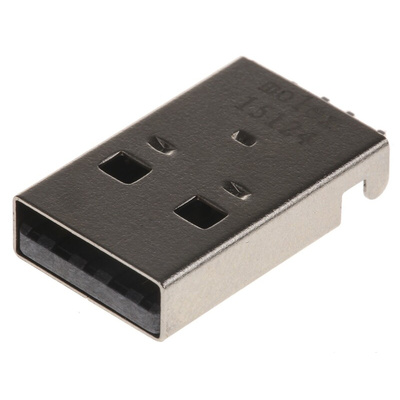

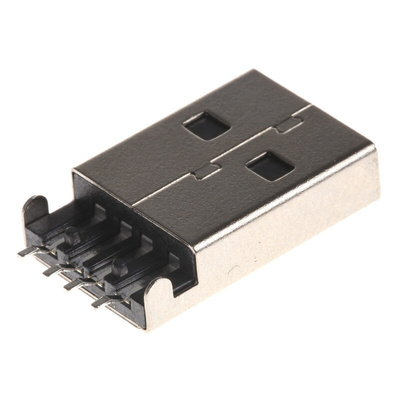

48037-2200, Molex Right Angle, SMT, Plug Type A USB Connector, Разъем

Molex USB Connector, 1.5A Current Rating, 150V AC Maximum Voltage - 48037 Series - 48037-2200

Use this USB type A connector from Molex to easily link your electronic devices to each other. It's made from durable and rust-resistant steel that protects it from impact and damage. The plug is designed so that it can't be accidentally fitted to the wrong mating part. Thanks to a wide temperature tolerance range between -20°C and +85°C, it's suitable for use in tough conditions.

Features & Benefits

• Solder termination type for a secure connection
• Gold-plated terminals resist corrosion and heat, ideal for use in demanding environments
• Locks to mating part to ensure a secure fit, even in vibrating equipment

Applications

• Networking and communication devices
• Automotive industry
• Robotics and automation systems

What's the maximum process temperature for soldering?

The maximum process temperature for soldering this unit is 260°C, to prevent damage to the terminals.

Molex USB Connectors

USB Type A SMT PCB Plug with straight shell legs - Drawing

Datasheet

Product Specification Sheet - 48037-2200
