48037-1000, Molex Right Angle, SMT, Plug Type A 2.0 USB Connector, Разъем

Molex USB PCB Plugs

A range of Molex 48037 Series USB Type A PCB Shielded Plugs:

800-6772 SMT, straight tabs
800-6788 SMT, kinked tabs, tray
800-6778 SMT, kinked tabs, reeled
800-6797 Through Hole, kinked tabs

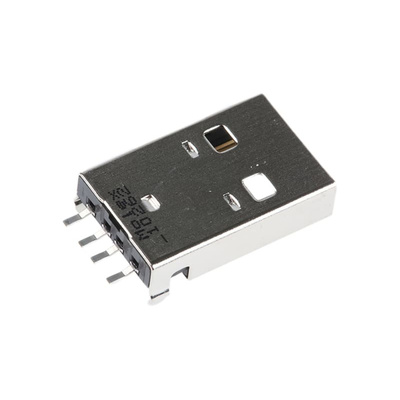

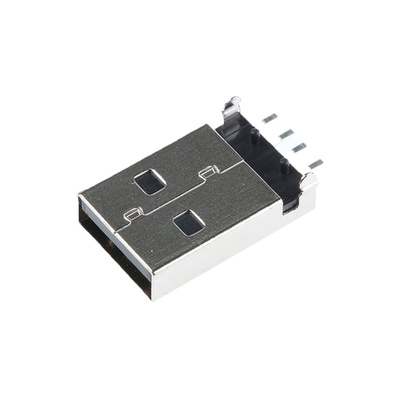

Molex Surface-Mounted USB Connector, Type A - 48037 Series - 48037-1000

Need a reliable USB (universal serial bus) connector for your household or office devices? This Molex USB type-A connector is designed for general-purpose use in common electronic equipment. The plug is made of gold-plated tin to ensure good conductivity while resisting corrosion and rust, giving you a long-lasting, reliable connection. It's designed for surface mounting to a PCB (printed circuit board) for ease of installation. Thanks to its voltage rating of 150V AC, this USB-A connector is safe to use with most general consumer devices.

• Compatible with PCBs with a thickness of 1.2 to 1.6mm for versatility
• Wide operating temperature range of -20°C to +85°C for use in a variety of environments
• Right angle orientation for use in tight or awkward spaces
• Polarised to mating part and PCB to prevent damage caused by incorrect connections
• Solder termination method ensures a secure connection that's protected against dust and moisture

Applications

• Computer systems
• Device chargers
• Communications applications

Can this connector handle electromagnetic interference?

This connector features full electrical shielding to minimise electromagnetic interference and ensure reliable data transmission.

Molex USB Connectors

USB A Type SMT PCB Plug Right Angle - Drawing

Datasheet
