48037-0001, Molex Right Angle, Through Hole, Plug Type A 2.0 USB Connector, Разъем

Molex USB PCB Plugs

A range of Molex 48037 Series USB Type A PCB Shielded Plugs:

800-6772 SMT, straight tabs
800-6788 SMT, kinked tabs, tray
800-6778 SMT, kinked tabs, reeled
800-6797 Through Hole, kinked tabs

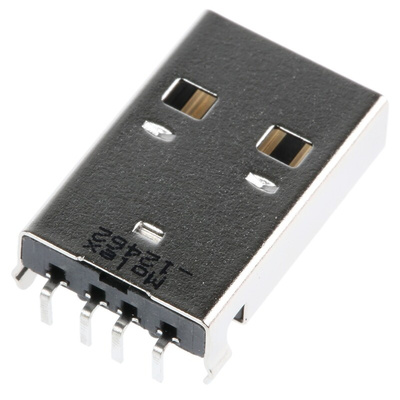

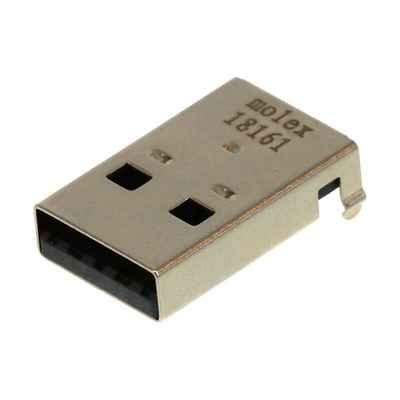

Molex USB Connector, Type A, Male - 48037 Series - 48037-0001

Add USB connectivity to your electrical system with this male connector from Molex. Its USB 2.0 specification gives you data transfer rates of up to 480Mbit/s for efficient information management. This device condenses many serial connections into one interface so it performs effectively with different types of peripherals. Weighing in at just 2.3g, this connector is light and easy to handle. Its operating temperature range of -20°C to +85°C makes it ideal for use in harsh conditions.

• Solders directly onto the free end of a compatible cable for quick and secure installation
• Highly conductive gold contact plating gives a reliable electrical connection and eliminates the risk of data loss
• Right-angle orientation for use in tight and hard-to-reach spaces

Applications

• Data storage devices
• Performance analysis
• IT industry

What is a male-gendered connector and how do I use it?

With any cable interface, there are male and female connectors. This refers to the way they couple when connected. Male connectors or 'plugs' like this one are often found on cables or peripherals like USB drives, while female connectors or 'sockets' are usually located on personal computers or printed circuit boards.

Molex USB Connectors

USB Type A PCB Plug Right Angle Through Hole - Drawing

Datasheet

8006797_Product Specification Sheet_en
