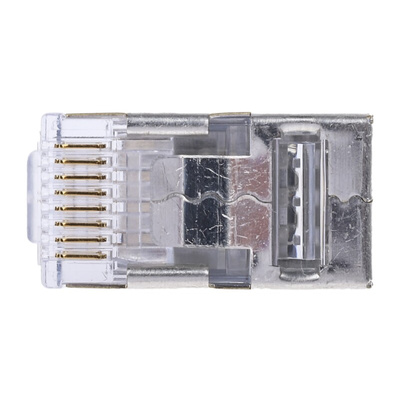

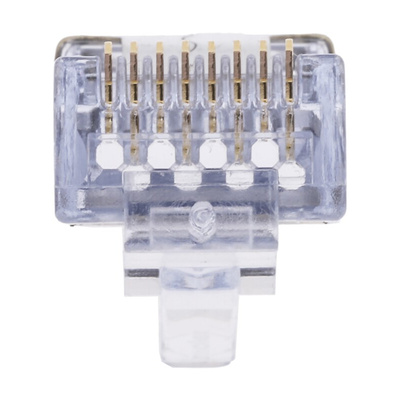

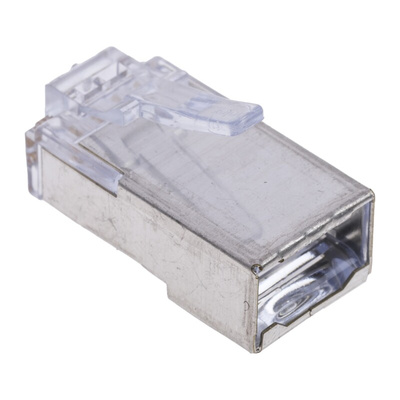

44915-0011, Molex 44915 Series Male RJ45 Connector, Cable Mount, Cat6, Разъем

Molex RJ45 Cat 6 Modular Plugs with Long Body - 44915 Series

44915 series RJ45 modular plugs suitable for LAN Category 6. These RJ45 modular plugs have a long body design made from clear UL 94V-0 polycarbonate. Shielding provides EMI protection and a strain relief reduces the extraction force on the terminated contacts.
Stock number 800-6781 is unshielded
Stock number 800-6826 is shielded
Stock number 800-6829 is shielded with a strain relief

Features and Benefits

• Long body design
• Shielding for EMI protection
• Strain relief for reduced contact extraction force

Product Application Information

These Cat6 RJ 45 modular plugs are ideal for use in voice, data and high-speed networking applications in the consumer, data communications, industrial, medical and networking industries

Molex RJ45 Connector, 1.02mm Mating Interface, 8/8 Positions - 44915 Series - 44915-0011

Need to link wires to your local area network? Terminate them with this RJ45 connector from Molex. Once attached, it lets you connect your computer to routers, printers or consoles. The bronze contact zips signals along to a Cat6 standard, for near-instant responses. Thanks to the highly conductive gold plating, connections are reliably crystal-clear. This unit handles up to 500 mating cycles, so it's ideal for systems that need regular rejigging.

Features & Benefits

• Polycarbonate material is highly durable so it stands up to tough tasks
• Delivers reliable performance in extreme temperatures between -40°C to +85°C
• Gold-plated contacts withstand corrosion so it's safe to use in humid areas

Applications

• Telecommunication networks
• Data centres
• Commercial offices

What crimp tool do I need to attach this connector?

You can use the field-ready tool (213-4413) or professional-grade option (213-4386) from Molex to terminate this connector in a jiffy.

RJ45 Cat6 Long Body Modular Plug 8/8 - Drawing

Datasheet

Product Specification Sheet - 44915-0011
