47219-2001, Molex, 47219 8 Way Hinged Micro SD Memory Card Connector With Solder Termination, Разъем

Molex micro SD Hinged Memory Card Connector - Series 47219

47219 series micro SD card connector with a low profile height of 1.10 mm offering vertical PCB space saving. This micro SD card connector has a hinged design which allows easy card insertion and locks it securely into position. Card polarization features ensure correct card orientation preventing misinsertion. The housing of this micro SD connector is made from high temperature thermoplastic surrounded by a shielded stainless steel shell for protection against EMI. Retention features on the shell provide a secure connection to the PCB.

Features and Benefits

• Low profile height of 1.10 mm
• Compact space saving design
• Hinged design for easy card insertion and withdrawal
• Card polarizaton features
• Shielded stainless steel shell for EMI protection
• PCB retention features

Product Application Information

This hinged micro SD card connector is ideal for use in mobile applications including digital still cameras, digital video cameras, mobile phones, PDAs and portable audio players

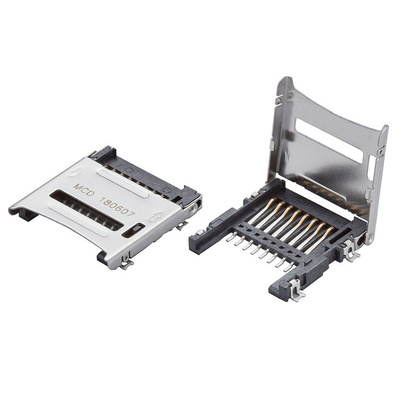

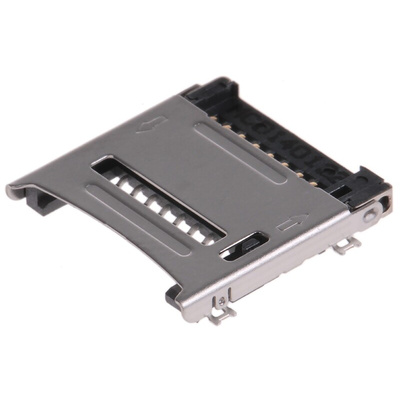

Molex MicroSD Memory Card Connector, 8 Way, Hinged Cover - 47219 Series - 47219-2001

Use this microSD connector from Molex to increase the storage capacity of your mobile equipment. It lets your data-collecting devices save information to an inserted microSD memory card for easy and portable data transfer. The connector uses highly conductive copper-alloy electrical contacts, so you can be sure of reliable and continuous data connection. As this unit has a hinged insertion method, it keeps a secure hold on your memory card even under vibrations.

• Robust LCP housing is flame-retardant to protect your memory card and data in the event of a fire
• Slim size (1.9mm width) means it's ideal for portable devices like digital cameras
• Stainless steel shielding prevents disruption from EMI
• Operating temperature range of -20°C to +85°C for use in harsh environments

Applications

• Portable measuring devices
• Filming and photography applications
• Consumer electronics

What is EMI and why should I protect my data connections against it?

EMI is electromagnetic interference generated by both natural and man-made sources. Mobile networks, heavy industrial equipment and natural events such as thunderstorms all create EMI, which can disrupt your data while it's being transferred. The stainless steel shielding on this connector minimises the risk of data loss due to EMI.

Memory Card Connectors

1.10mm Pitch microSD Card Connector, TFR Reader, Hinge Type - Drawing

Datasheet

8006845_Product Specification Sheet_en
