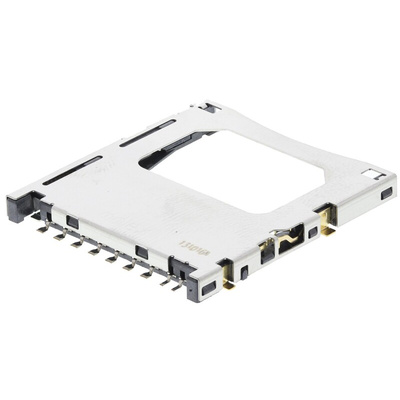

67600-8001, Molex, 67600 9 Way Horizontal Push/Push SD Card Memory Card Connector With Solder Termination

Molex Push-Push SD Memory Card Connectors - 500998 and 67600 Series

500998 and 67600 series 9 circuit SD memory card connectors with a 2.5 mm pitch and an ultra-low profile height of 2.8 mm. These SIM card sockets feature a push-push mechanism for easy insertion or removal of the SD card and a card detection switch. The housings of these SD memory card connectors are made from high temperature thermoplastic that can withstand lead-free processing. Fully shielded covers provide protection against EMI interference. Stock numbers 487-9327, 800-6924 and 800-6920 also feature locators for accurate mounting and alignment on the PCB

Features and Benefits

• Ultra-low profile 2.8 mm design
• Push-push mechanism for easy card insertion and removal
• Card detection switch
• High temperature thermoplastic housings
• Fully shielded metal covers for EMI protection
• PCB locators for accurate mounting

Product Application Information

These 67600 series SD memory card connectors are suitable for use in a wide range of applications including digital video cameras, digital still cameras, mobile phones, PDAs and portable audio players

Memory Card Connectors

SD Memory Card Connector SMT with Locator Posts without Mylar - Drawing
