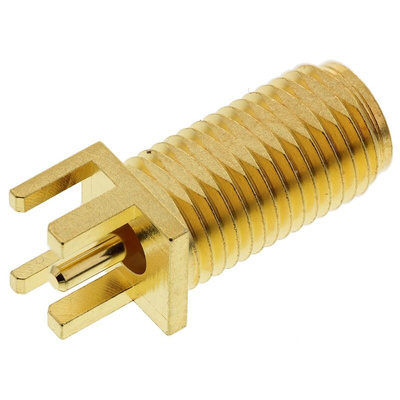

73251-2123, Molex SMA Series, jack Edge Mount SMA Connector, 50Ω, Solder Termination, Straight Body, Разъем

Molex 50 Ohm SMA RF Coaxial PCB Jack Connectors

50 Ohm SMA RF coaxial PCB mount Jack Receptacles with a teflon dielectric, gold plated centre contact and brass body with Gold plating except 800-6918 and 800-6936 which have Nickel plated bodies.
These SMA RF coaxial PCB mount Jack Receptacles features are:
759-5293 PCB and Panel mount, supplied with a jam nut and lock washer.
759-5299 Edge mount, 1.6 mm thick PCB, length from PCB edge is 9.53 mm.
759-5252\tRight Angle, Through Hole
800-6918\tRight Angle, Through Hole Nickel plated
800-6961\tEdge Mount, 1.6 mm thick PCB, length from PCB edge is 12.7 mm.
759-5303\tVertical, Through Hole
800-6933\tVertical, SMT
800-6949\tEdge and Bulkhead mount (no hardware)
800-6936\tRight Angle, PCB and Bulkhead mount, Nickel plated
841-1827 Right Angle, PCB mount, Through Hole
800-6986 Jack to Jack Bulkhead Adapter

Molex Coaxial Connector, Threaded Connection, 1.57mm Recommended PCB Thickness - SMA Series - 73251-2123

To make sure your PCB and signal cable are on speaking terms, join them with this coaxial connector from Molex. You set it up by simply inserting your frequency wire into the mounting hole. The unit's robust gold plating means it stands up to corrosion in harsh settings. As it's designed for edge mounting, you can use it to clamp down the corner of your board to a panel. A straight body orientation makes it a cinch to mount without complex tools.

• Beryllium copper contact delivers high electrical conductivity
• High impedance of 50Ω to run cables over long distances
• Threaded body for increased contact with cable to reduce interference

Applications

• Telecommunications networks
• Computer peripherals
• Aerospace engineering

What size of PCB can I use this connector with?

To get quality signals delivered to your circuit, it's recommended that you use this connector with a PCB that's 1.57mm thick.

Molex SMA RF Coaxial Connectors

The Molex range of high- performance SMA RF Coaxial subminiature Connectors are suitable for microwave frequencies. The SMA design of threaded couplings gives uniform contact of the outer conductors to reduce reflections and attenuation at higher frequencies. High mechanical strength and durability are also ensured by the threaded SMA design.

SMA Right Angle Jack, Bulkhead and PCB Edge mount - Drawing
