73251-0361, Molex Straight 50Ω Adapter SMA Socket to SMA Socket 18GHz, Переходник

Molex 50 Ohm SMA RF Coaxial PCB Jack Connectors

50 Ohm SMA RF coaxial PCB mount Jack Receptacles with a teflon dielectric, gold plated centre contact and brass body with Gold plating except 800-6918 and 800-6936 which have Nickel plated bodies.
These SMA RF coaxial PCB mount Jack Receptacles features are:
759-5293 PCB and Panel mount, supplied with a jam nut and lock washer.
759-5299 Edge mount, 1.6 mm thick PCB, length from PCB edge is 9.53 mm.
759-5252\tRight Angle, Through Hole
800-6918\tRight Angle, Through Hole Nickel plated
800-6961\tEdge Mount, 1.6 mm thick PCB, length from PCB edge is 12.7 mm.
759-5303\tVertical, Through Hole
800-6933\tVertical, SMT
800-6949\tEdge and Bulkhead mount (no hardware)
800-6936\tRight Angle, PCB and Bulkhead mount, Nickel plated
841-1827 Right Angle, PCB mount, Through Hole
800-6986 Jack to Jack Bulkhead Adapter

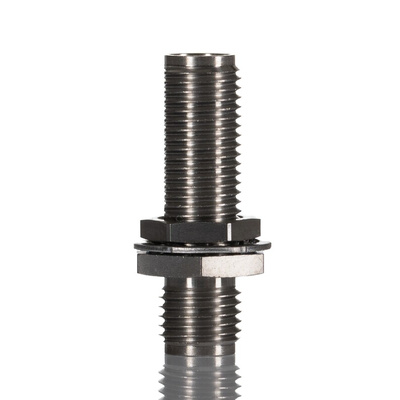

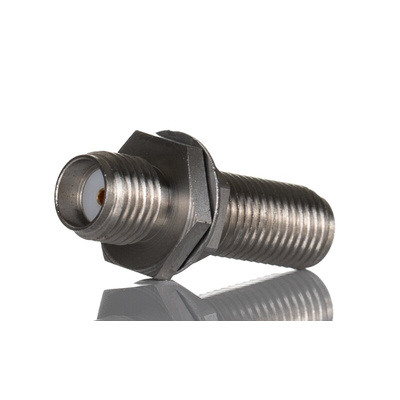

Molex SMA-to-SMA Adapter, Jack Type, 50Ω Impedance - 73251-0361

Extend your network's reach with this SMA-to-SMA adapter jack from Molex. It's a 50Ω adapter with a female socket on each end. The sockets are threaded to provide uniform contact with the outer conductors, keeping reflections and attenuation to a minimum and delivering a clean signal. This threaded design also helps you build a mechanically stable cable assembly that you can rely on. As it's a bulkhead adapter, this is a suitable option for joining cables through a panel.

• Gold-plated centre contact resists corrosion to provide high conductivity
• Teflon dielectric minimises toxic gases in the event of a fire
• Hex form to help you fit it easily with a spanner

Applications

• Microwave systems
• Handheld radios
• Mobile telephone antennas

How many pieces is this adapter made up of?

This adapter comprises three pieces – body, nut and washer – for easy installation without the need for extra parts.

Molex SMA RF Coaxial Connectors

The Molex range of high- performance SMA RF Coaxial subminiature Connectors are suitable for microwave frequencies. The SMA design of threaded couplings gives uniform contact of the outer conductors to reduce reflections and attenuation at higher frequencies. High mechanical strength and durability are also ensured by the threaded SMA design.

Precision SMA Jack to Jack Bulkhead mount Adapter - Drawing
