67581-0000, Molex SATA Series Female Crimp Terminal, 22AWG Min, 18AWG Max, Контакты

Molex 1.27mm Serial ATA Crimp Receptacle Housings and Power Cable Receptacles, Series 67581 & 67582

1.27mm 15 way 67582 series Serial ATA cable mount crimp receptacle housing (stock number 800-7002) made from black 94V-0 polyester with keying to aid accurate mating. This 1.27mm Serial ATA crimp housing is for use with the 67581 Serial ATA crimp receptacle power cable terminals (stock numbers 904-8121 and 800-7009). These Serial ATA crimp receptacle terminals are gold plated, have a maximum current of 1.5A per contact, a maximum voltage of 15 Vdc and accept a wire size range of 22-18 AWG. Stock number 800-7009 has a 'Type I' reel direction and stock number 904-8121 has a 'Type II' reel direction (please refer to datasheet for details)

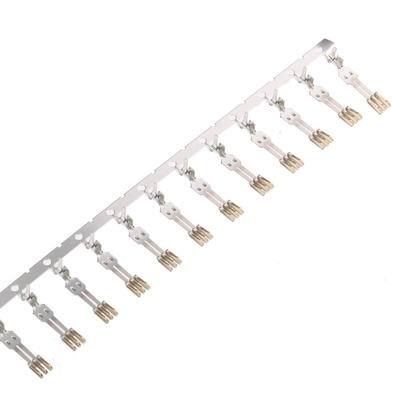

Molex Crimp Terminal, For use with Serial ATA Connector Housing, Gold Contact Plating - SATA Series - 67581-0000

Need to connect host bus adapters to storage devices such as solid-state drives, hard disk drives and optical drives? This crimp terminal from Molex will help you on your way. It's a female terminal that's designed for use with 67581-series ATA crimp receptacle power cable terminals (such as 904-8121 and 800-7009). Thanks to gold contact plating, you can be sure the unit resists corrosion to achieve maximum conductivity and optimal signal transmission.

• Operating temperature range of -35°C to +85°C makes it suitable for use in harsh industrial environments
• Passivated stainless steel body resists corrosion for a long service life
• Accepts wires sized between 22 and 18AWG for versatile use

Applications

• Computer networks
• Offices
• Laboratories

What's SATA?

SATA is a data transfer protocol that's the most commonly used type of connection in modern computers, thanks to its high transfer speeds.

Terminal for SATA Power Cable Recptacle - Drawing
