67298-4090, Molex Right Angle, Through Hole, Socket Type A 2.0 USB Connector, Разъем

USB PCB Receptacles

From Molex, a range of PCB mount USB Receptacles in a range of variations. These Through Hole USB Receptacles have a high temperature Nylon Glass Fibre filled UL 94V-0 housing coloured Black (unless otherwise stated) with a Tin plated copper alloy shell. This Molex range of USB receptacles is suited to various applications, such as Desktop and Notebook PC's, Keyboard, Mouse, Telephony - ISDN, PBX's, Handsets and peripherals.

Variations of Molex USB Receptacles are as follows:

USB 'A' types:
515-1945 Upright, Right Angle, kinked tabs, panel through style, without Mylar
515-2049 Upright, Right Angle kinked tabs, flange out
800-6863 Upright, Right Angle, Reverse Mount, Polyester Black
800-6848 Dual Right Angle, Polyester Black, kinked tabs, Gold Flash
800-6876 Dual, Right Angle, Polyester Black, kinked tabs, 0.76 μm Gold
800-7012 Dual, Right Angle, Polyester White, kinked tabs, Gold Flash
822-3208 Upright, Right Angle, Gold Flash
896-7579 Vertical with 3 bevelled metal pins

USB 'B' types:
515-1967 Right Angle, kinked tabs, Gold Flash
515-1989 Right Angle, kinked tabs, 0.76 μm Gold
800-6841 Right Angle, straight tabs, Gold Flash
800-6851 Right Angle, straight tabs, 0.76 μm Gold
800-6857 Right Angle, kinked Tabs, 0.76 μm Gold
800-6860 Right Angle, Polyester White, Kinked Tabs, Gold Flash

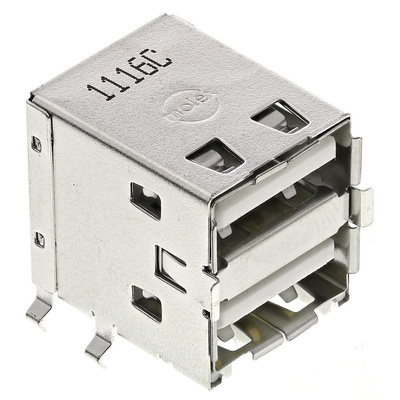

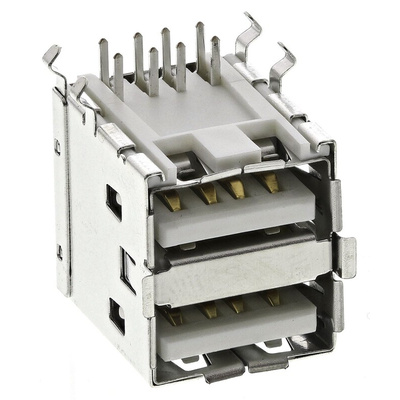

Molex USB Connector, Dual Stacked, Shielded - 67298 Series - 67298-4090

Get separate bits of kit working as one with this dual USB connector from Molex. It's a female connector that's designed for through-hole mounting so you can build it seamlessly into your equipment. The right-angled configuration helps save space when you're building a compact system. As a type A USB connector, it's compatible with common devices ranging from hard drives and digital cameras to keyboards.

• Phosphor bronze contact material ensures reliable conductivity for faithful signal transmission
• Solder termination helps you make secure connections
• Shielded to protect the signal from electromagnetic interference

Applications

• Telecommunications systems
• Computer networks
• Factory automation

What's type A USB?

Type A USB refers to the physical design of the port. It's the most recognisable type of USB port – horizontal with a row of pin connectors at the bottom.

Molex USB Connectors

USB A Type Dual Stacked Through Hole PCB Receptacle Right Angle with kinked board lock - Drawing
