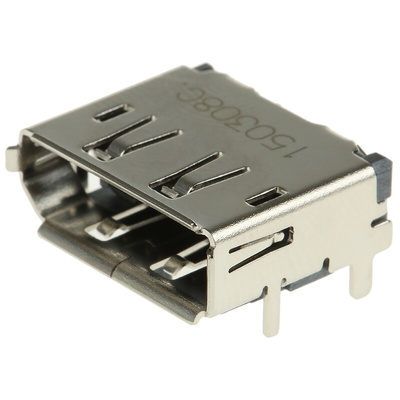

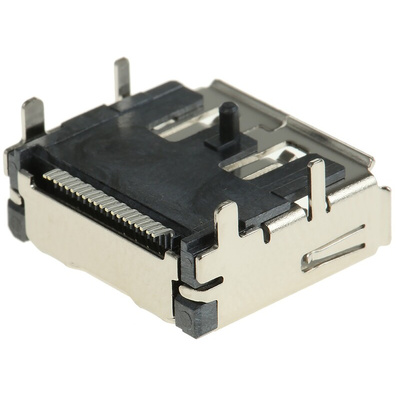

47272-0001, Molex DisplayPort Series Right Angle Surface Mount PCB Socket, 20-Contact, 2-Row, 0.5mm Pitch, Solder Termination

Molex 0.50 mm DisplayPort External Connector - 47272 Series

47272 series SMT mounting receptacle designed to connect DisplayPort cable assemblies to a PCB. This DisplayPort SMT connector has a space saving footprint and a D-shaped chamfer the mating interface for polarized mating. The housing of the connector is fully shielded for protection against EMI and RFI emissions. Detent locks and latch holes on the shell provide a secure and reliable mating connection. These DisplayPort SMT receptacles feature plastic pegs that ensure correct placement on the PCB. Metal solder pegs increase rigidity and provide extra retention on the PCB

Features and Benefits

• PCB space saving footprint
• D-shaped chamfered interface provides polarization
• Fully shielded against EMI and RFI emissions
• Detent locks and latch holes for secure mating connection
• PCB alignment pegs
• PCB solder pegs for in creased rigidity and retention to PCB

Product Application Information

These DisplayPort receptacle connectors form part of the DisplayPort interconnection system which is used for delivering high definition video of up to 10.8 Gbit/s and audio signals. Applications include games consoles, monitors, personal computers, projectors, set-top boxes, TV displays and work stations

Molex DisplayPort PCB Socket, 2 Rows, 20 Contacts - 47272 Series - 47272-0001

Looking for a simple way to connect your cable assemblies to your printed circuit boards (PCBs)? Opt for this DisplayPort PCB socket from Molex for secure and reliable connections. It's designed to work with high-definition video applications that need high speeds of up to 10.8Gbps (gigabits per second). The two-row design keeps your connections organised and saves space on a PCB, while the plastic pegs ensure correct placement for optimal signal quality and performance. You can use this DisplayPort socket to connect monitors to computers at home, in offices and in industrial settings.

• Fully polarised to prevent mismating and cable damage
• Right-angle design for ease of installation in awkward or tight spaces
• Detent locks and latch holes ensure secure and reliable mating connections for interference-free power and data transfers
• Wide operating temperature range of -20°C to +85°C for use in demanding environments
• Copper-alloy contacts offer high conductivity and corrosion resistance to ensure a reliable connection

Applications

• Information technology sector
• Automotive industry
• Gaming consoles

Is this socket protected against interference?

Yes, this socket is fully shielded for protection against EMI (electromagnetic interference) and RFI (radio frequency interference), so you can rest assured you'll get reliable signal transmission.
