47553-1001, Molex, 47553 6 Way Memory Card Connector With Solder Termination, Разъем

Molex Push-Push SIM Card Socket Connectors - 47553 Series

47553 Series 6 circuit SIM card socket connectors with a 2.54 mm pitch and a low profile height of 1.8 mm. The standard socket form factor of these SIM card sockets allows all industry standard SIM cards to be used. These SIM card sockets feature a push-push mechanism for easy insertion or removal of the SIM card and two card detect pins. The housings of these SIM card sockets are made from high temperature thermoplastic that can withstand lead-free processing. Fully shielded covers provide protection against EMI interference.
Stock number 800-6873 has a durability of up to 2500 mating cycles
Stock number 800-7028 features PCB mounting pegs and a durability of up to 2500 mating cycles
Stock number 800-6911 features PCB mounting pegs and a durability of up to 5000 mating cycles

Features and Benefits

• Low profile 1.8 mm design
• Push-push mechanism for easy card insertion and removal
• Card detection pins
• High temperature thermoplastic housings
• Fully shielded metal covers for EMI protection
• Mating cycles of up to 5000
• PCB alignment pegs

Product Application Information

These 47553 series SIM card socket connectors are suitable for use in a wide range of mobile communication devices. Applications include Notebook PCs, laptops, tablet PCs, cellular phones, smartphones, PDAs and GPS tracking devices

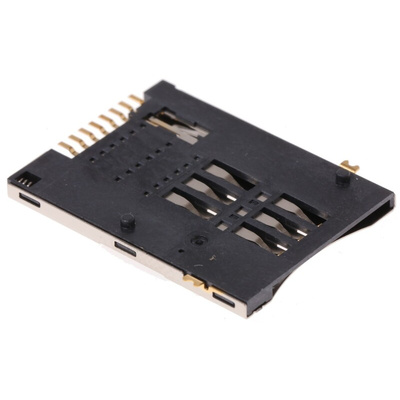

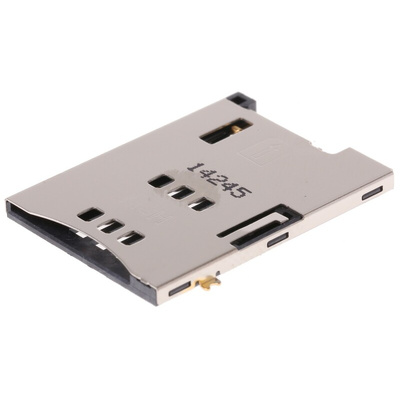

Molex Memory Card Connector, 6 Way, SIM Card Type - 47553 Series - 47553-1001

Hook up your memory cards seamlessly with this connector from Molex. It's built to an industry-standard socket form for wide compatibility with commonly used SIM cards. You can build it into everything from notebook PCs and laptops to mobile phones and GPS tracking devices to get quick and convenient data transfer. The low-profile 1.8mm design helps you build a compact system.

• Push-push mechanism for easy insertion and removal
• Gold-plated copper alloy contacts resist corrosion to offer reliable conductivity and faithful signal transmission
• Fully shielded covers protect against electromagnetic interference
• Operating temperature range of -40°C to +85°C makes it suitable for use in harsh industrial environments

Applications

• Data centres
• Medical equipment
• Offices

What's a SIM card?

A sim card is a smart card that carries an identification number unique to its owner. This helps protect the user's personal data.

Memory Card Connectors

SIM Card Connector SMT Push-Push 6 Pins with Detect Pin and Posts - Drawing

Datasheet
