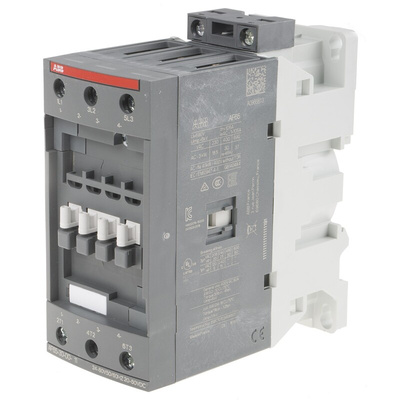

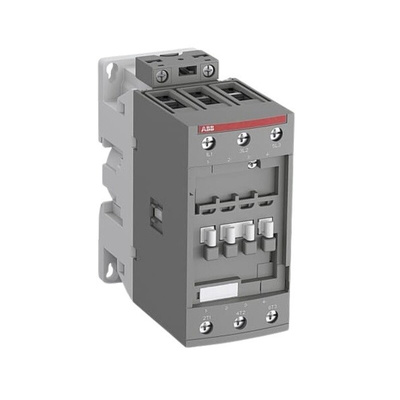

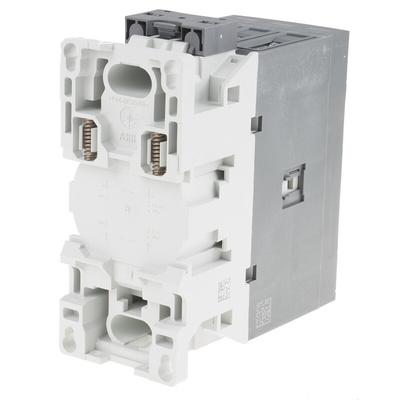

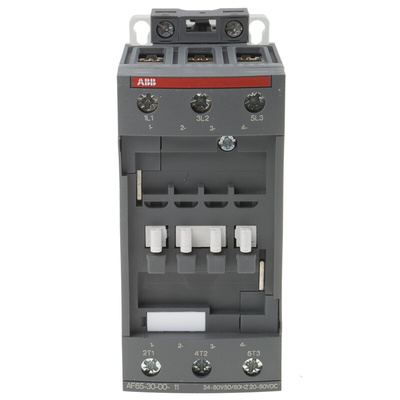

1SBL387001R1100 AF65-30-00-11, ABB AF Series Contactor, 24 V ac/dc Coil, 3-Pole, 105 A, 30 kW, 3NO, 690 V ac, Контактор

ABB Contactor, 30kW Power Rating, 105A Contact Current Rating - AF Series - 1SBL387001R1100 AF65-30-00-11

Looking for a reliable switching solution for your electric circuits? Turn to this contactor from ABB. The unit features a built-in electromagnetic coil to conduct current and energise the contacts. For extra peace of mind, it comes with built-in surge protection to prevent damage from current overloads. Thanks to a high contact voltage rating of 690V AC and a current rating of 105A, you can safely use this component in commercial systems. The screw terminals ensure a secure electrical connection to support stable performance.

Features & Benefits

• Wide operating temperature range between -40°C and +70°C to withstand demanding operations
• Compact dimensions of 55 (L) x 125.5 (W) x 111mm (D) to fit in tight spaces
• Power rating of 30kW for safe use in high-power systems

Applications

• Automotive engineering
• Construction equipment
• Manufacturing industry
• Power-generation plants

What's the difference between a contactor and a relay?

Contactors typically have NO contact configuration, while relays come in both NO and NC configurations. Contactors are regularly found in applications in need of higher switching power and relays are used in systems with low-current loads between 5 and 15A.

Control Cabinet Solutions

Panorama Motor protection and control Manual motor starters, contactors and overload relays

ABB Auxiliary Contacts Cross Reference List AF65 Range

Catalogue - Electrification Products

Instruction Sheet - Contactors AF

Line Drawing - 1SBL387001R1100 AF65-30-00-11
