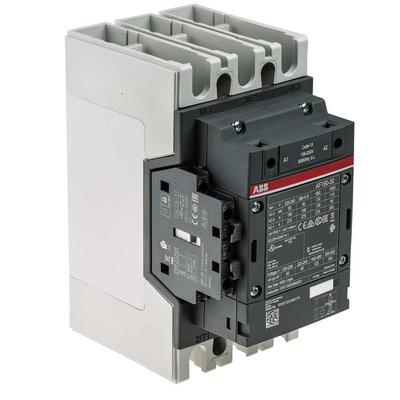

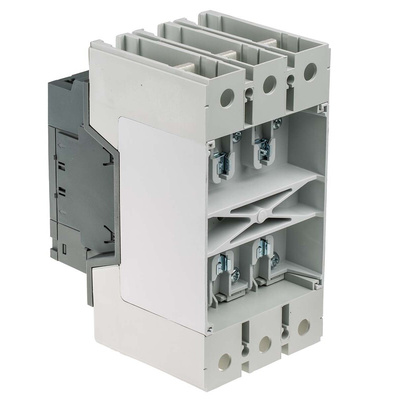

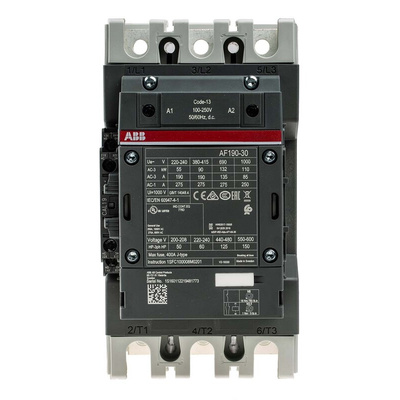

1SFL487002R1311 AF190-30-11-13, ABB AF Series Contactor, 230 V ac Coil, 3-Pole, 275 A, 90 kW, 3NO, 690 V ac, Контактор

8007258
Номер производителя: 1SFL487002R1311 AF190-30-11-13Производитель: ABB
Цена за шт.
280312.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

AF Range Contactors, 3 Pole

AF contactors are AC/DC operated
AF09-AF38 contactors include an electronic coil interface accepting a wide control voltage Ucmin - Ucmax. Only four coils cover control voltages 24 → 500 Vac or 20 → 500 Vdc
AF..Z contactors equipped with a Z coil type allow direct control by 24 Vdc, 500 mA PLC output and obtain a reduced holding coil consumption
AF.Z contactors withstand short dips and voltage interruptions (SEMI F47-0706 compliance)
AF40-AF96 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC and 220 V DC, these contactors are of the block type design with 3 main poles.
AF116-AF140 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC, AF146 up to 1000 V AC
AF190-AF370 contactors are mainly used for controlling 3-phase motors and power circuits up to 1000 V AC, these contactors are of the block type design with 3 main poles.
AF contactors have built in surge protection and does not require any additional surge suppressors

Standards

IEC 60947-1 / 60947-4-7 and EN 60947-1 / 60947-4-1

ABB 3-Pole Contactor, 275A Current Rating, 90kW Power Rating - AF190 Series - 1SFL487002R1311

Control your electric motor using this 3-pole contactor from ABB. As it has three NO contacts, it'll close the electrical circuit when you activate it, turning on the motor. A maximum current rating of 275A makes it suitable for use in heavy-duty equipment. It comes with two pre-mounted auxiliary contacts for enhanced control functions and malfunction monitoring. Thanks to its robust mechanical durability of 5,000,000 cycles, you can rely on this device to last a long time.

Features & Benefits

• Broad operating temperature range of -40°C to +70°C for use in tough environments
• Compact dimensions of 152 (length) x 105 (width) x 196mm (height) for installation in areas where space is limited
• Power rating of 90kW to handle heavy-duty applications
• Rated impulse withstand voltage of 8kV for protection against powerful overvoltage
• Maximum mechanical switching frequency of 300 cycles per hour for rapid action

Applications

• Lighting systems
• Manufacturing industry
• Energy industry

Does this contactor have any safety features?

This unit comes with built-in surge protection to prevent damage from powerful current surges, eliminating the need for external surge suppressors.

Техническая спецификация
pdfControl Cabinet Solutions
pdfPanorama Motor protection and control Manual motor starters, contactors and overload relays
pdfCatalogue - Manual Motor Starters, Contactors and Overload Relays
Глубина:
152мм
Диапазон:
AF190
Длина:
105мм
Катушка напряжение:
230 В перем. тока
Количество вспомогательных контактов:
2
Количество полюсов:
3
Конфигурация полюса и сброса:
3P
Мощность номинальная:
90 кВт
Номинальное напряжение контакта:
690 В перем. тока
Номинальный ток контакта:
275 A
Нормальное состояние конфигурации:
3NO
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-40°C
Серия:
AF
Тип клеммы:
Lug Ring Terminal
Ширина:
196мм
