NBN4-12GM50-E2, Pepperl + Fuchs Inductive Barrel-Style Proximity Sensor, M12 x 1, 4 mm Detection, PNP Output, 5 → 36 V dc, IP68, Индуктивный датчик приближения

Three Wire DC, Non-Flush Mountable Inductive Proximity Sensors

This range of inductive proximity sensors from Pepperl + Fuchs are for use where a non-contact solution is needed to detect the presence of metal objects. These sensors are designed into a nickel plated brass housing with a PBT sensing face to ensure a level of robustness whilst offering a lower cost alternative to a stainless steel sensor. As this range of inductive proximity sensors are unshielded they offer greater sensing distance than a regular shielded type sensor. Due to the sensors being unshielded this also means that they must be mounted in a non-flush manner.

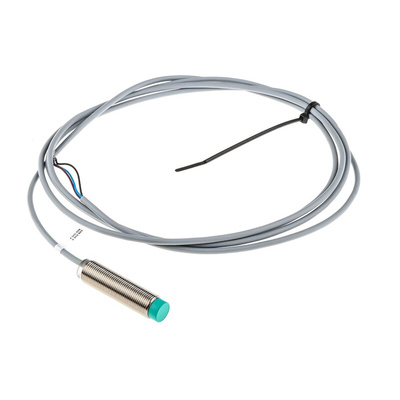

12 mm diameter, 50 mm long threaded barrel
3 Wire DC output

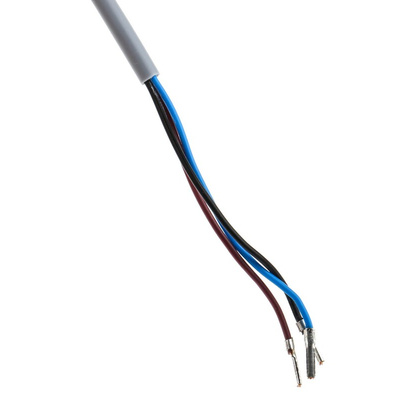

Pre-wired types have 2m PVC cable
Plug-in types have M12 type connector

Pepperl + Fuchs

Approval certificate

NBN4-12GM50-E2 - Datasheet
