Aim-TTi TG2512A Function Generator, 1μHz Min, 25MHz Max, FM Modulation, Variable Sweep, Генератор функций

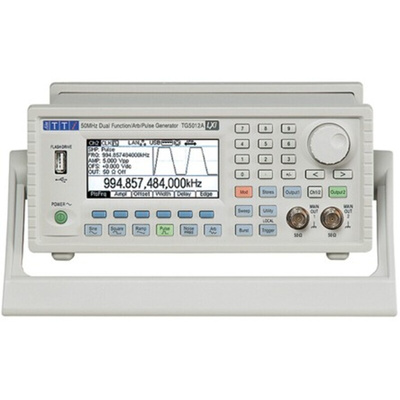

Aim-TTi Advanced 2 Channel Function/Arbitrary/Pulse Generators TG5012A, TG2512A

The Aim-TTi TG5012A and TG2512A are 2-channel versions of the single channel TG5011A ( 800-3173 ) and TG2511A ( 800-3177 ). All of these instruments share the same features but the 2-channel versions also have multi-channel capabilities including coupling for frequency and/or level, full tracking and defined phase offset. The channels can be used as completely independent generators, representing excellent value for money compared with buying two generators.

Two identical channels - independent or linked with coupled and tracking modes
Selectable coupling of frequency (equal or offset), amplitude/dc offset
Inter-channel phase offset of -360° to +360° with 0.1° resolution
0.001mHz to 50MHz (TG5012A) or 25MHz (TG2512A) range, 14 digits or 1μHz resolution
20mV to 20V pk-pk output from 50Ω, multi function aux. out
True pulse generator with variable delay and variable rise/fall
Arbitrary waveforms of up to 128K points at up to 125MS/s
Standard waveforms include sine, square, ramp, pulse, PRBS, sin(x)/x, noise, exponential, logarithmic, PRBS
Waveform storage and file transfers using USB flash drives
Large graphic LCD with simultaneous text and waveform display
Comprehensive internal and external digital modulations including AM, FM, PM, PWM, FSK, BSPK, Sum and PRBS
Waveform Manager Plus for Windows software included
Programmable via USB & LAN (LXI) interfaces
Storage for multiple instrument set-ups in non-volatile memory
Compact half-rack 2U casing with protective buffers and handle

Aim-TTi Digital Function Generator

The Aim-TTi digital function generator is a 2-channel module with a range up to 25Mhz. It has various features including a coupling for frequency and/or level, full tracking, and defined phase offset. It can generate many standard waveforms including sine, square, ramp, pulse, PRBS, sin(x)/x, noise, exponential, logarithmic, and PRBS. The channels can be used as completely independent generators, representing excellent value for money compared with buying two generators.

Features and Benefits

Two identical channels - independent or linked with coupled and tracking modes
Selectable coupling of frequency (equal or offset), amplitude/dc offset
Inter-channel phase offset of -360° to 360° with 0.1° resolution
0.001mHz to 25MHz range, 14 digits or 1μHz resolution
20mV to 20V peak to peak output from 50Ohms, multi-function aux. out
True pulse generator with variable delay and variable rise/fall
Arbitrary waveforms of up to 128K points at up to 125MS/s
Waveform storage and file transfers using USB flash drives
Large graphic LCD with simultaneous text and waveform display
Comprehensive internal and external digital modulations including AM, FM, PM, PWM, FSK, BSPK, Sum, and PRBS
Waveform manager plus for Windows software included
Programmable via USB and LAN (LXI) interfaces
Storage for multiple instrument set-ups in non-volatile memory
Compact half-rack 2U casing with protective buffers and handle

Applications

Integrated electronic testing
Educational institutes
Embedded systems
Digital circuits
Analogue signal processing
Laboratories

Certifications

EN61010-1
EN61326

TG2511A, TG2512A, TG5011A, TG5012A Advanced Function/Arbitrary/Pulse Generators Data Sheet
