2864011, Phoenix Contact MCR-SL-D-U-I LED Digital Panel Multi-Function Meter for Signals, 24mm x 48mm, Многофункциональный измеритель

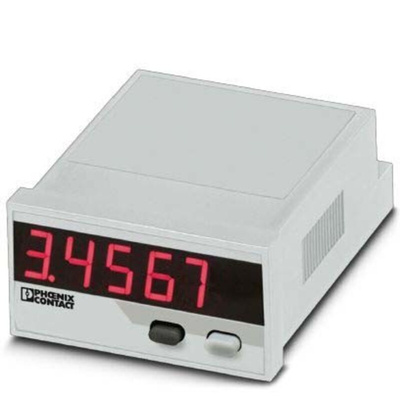

Phoenix Contact Digital Panel Multi-Function Meter, 5-Figure Display, 0 to 10V Input Voltage - MCR-SL-D-U-I - 2864011

This Phoenix Contact multi-function meter reliably measures signals in your system. It's a versatile diagnostics tool that reads current, voltages and temperatures. Programmable limits let you set the minimum and maximum values for your application, making it easy to know when your readings go off-track. A five-figure display with an adjustable decimal point means the product gives you precise readings at the scale your application needs.
The meter comes with a large display that's 48mm wide and 24mm in height, so it's easy to read at a distance for quick measurement recording. By supporting input signals between 0 and 10V, it works with standard sensing and measuring equipment and is widely compatible. The component's front face carries an IP65 ingress protection rating, so you can trust it's dust-tight, protected against low-pressure jets of water and safe to use in demanding industrial conditions.

Features & Benefits

• Backlit LED display reads clearly in all lighting conditions
• Low 50mA maximum current consumption for energy efficiency
• Screw terminals protect connections against jostling
• Meets EN 61000-4-2 standards for immunity to EMI

Phoenix Contact LED Digital Panel Meters

Datasheet

Line Drawing - 2864011
