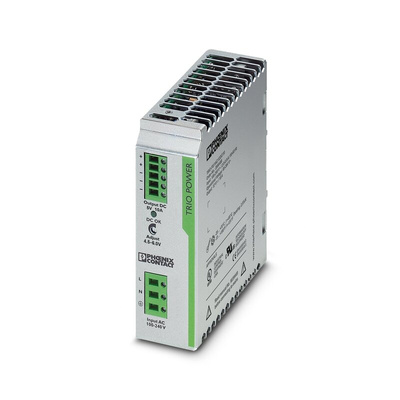

2902646, Phoenix Contact TRIO-PS/1AC/5DC/10 Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 5V dc dc Output,, Блок питания

Phoenix Contact TRIO Single Phase Power Supplies

The range of Trio, single phase power supplies from Phoenix Contact have been designed for DIN rail mounting and are suitable for worldwide applications that have a range of input voltages. The PSU has standard functionality and has adjustable output meaning that compensation can be made for long cable runs and battery charging applications.

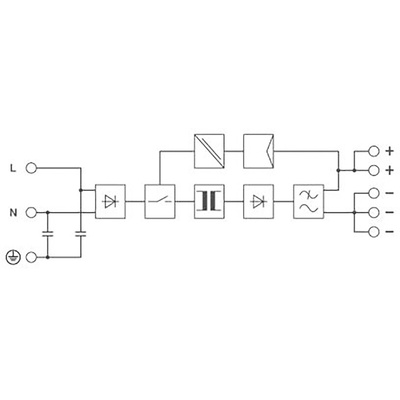

The electrical and mechanical design of the primary switched power supply ensures that you have the reliability of all loads in the most challenging conditions.

Features and Benefits:

• Can be used on networks where the phases become imbalanced


• Withstands up to 300Vac input


• Temperature range -25 to +70°C


• Robust metal housing


• High Electric strength


• Minimize installation costs by using the third negative terminal block as a grounding terminal block


• High MTBF (mean time between failures) of more than 500,000 hours


• High dielectric strength of up to 300 V AC


• Quick installation thanks to a push-in connection


• Slim design


• Input for AC and DC voltage

Typical applications:

Can be used worldwide in all industrial sectors due to a wide-range input and an international approval package these include motors, valves, and solenoids.

Approvals

UL/C-UL Recognised (UL 60950), UL/C-UL Listed (UL 508) approved

Phoenix Contact DIN Rail Power Supply,

Need a trusty power and conversion solution for high-load applications? Hook up this DIN rail power supply from Phoenix Contact. It accepts input voltages anywhere between 85 and 264V AC and switches them down to a steady 5V DC with a variance of just 1% either way. This makes it a practical option for charging sensitive DC-powered components such as laptops.
As the unit's adjustable, you get close control over your load circuit and can easily compensate for extended cable runs that may otherwise cause fluctuations. A low ripple and noise rating of

Features & Benefits

• Suits an ambient temperature range of -25°C to +70°C, so it's compatible with harsh environments
• IP20 rating indicates you can trust all terminals are touch-safe and won't deliver shocks
• Mean time between failures up to 500,000 hours, so it's a long-lasting choice
• Simply clips onto a standard 35mm DIN rail for easy mounting
