1511860, Phoenix Contact Circular Connector, 8 Contacts, Cable Mount, M12 Connector, Socket, Female, IP67, SACC Series, Разъем

Phoenix Contact SACC-M12FS SPEEDCON Series of Connector

Phoenix Contact brings you the M12 SACC-MSD series of SPEEDCON connector. The SPEEDCON connector offers you a faster locking-system, saving you on the amount of installation time. The SACC M12 series is flexible, robust and versatile and built to withstand unstable environments.

Features and Benefits

• A high degree of protection, rated at IP 67. Operates at an ambient temperature between -40°C to +85 °C, ideal for industrial environments.

• Screw connection, widely compatible with different conductors. The wires can be connected with or without the use of ferrules.

• Zin die-cast, nickel-plated knurls material. Sealed with NBR.

• IEC 61076-2-101 regulated.

• Overvoltage category 2 degree of protection

Typical Applications

• Several industrial automation applications where a stable and secure wire connection is a must.

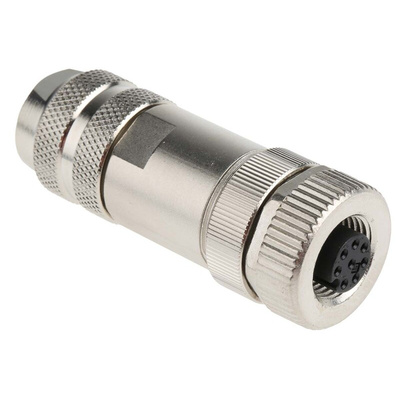

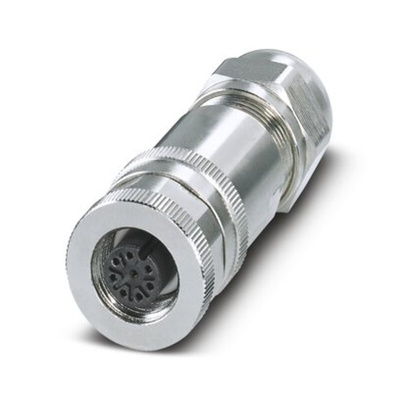

Phoenix Contact Straight Body Connector, 8 Contacts - SACC-M12FS-8CON-PG 9-SH - 1511860

This SPEEDCON connector from Phoenix Contact makes it easy to assemble wires of differing lengths. Its screw connection is compatible with a wide range of conductors and lets you connect wires with or without ferrules. A fast-locking system makes it quick and easy to install.
Thanks to 360° shielding, you can be confident of noise-free signal transmission in environments with electromagnetic interference. Highly durable nickel-plated brass body material makes this connector suitable for use in a range of harsh industrial settings, while knurls provide additional grip for easier assembly.
Silicon sealing materials keep the cables inside this connector well protected, and an IP67 (ingress protection) rating means it can withstand dust and immersion in water for up to 30 minutes. Circular connectors like these are widely used for factory automation, process control and industrial networking applications.

• Light weight of 49.82g won't put strain on your system
• 8 contacts with gold contact plating for resistance to oxidation
• Cable mounting type with a straight body orientation for simple installation
• Durable zinc housing material
• Operating temperature range of -40°C to +85°C for use in demanding applications

Connector - SACC-M12FS-8CON-PG 9-SH
