0712194, Phoenix Contact Thermal Circuit Breaker - TCP 1A Single Pole 65 V dc, 250V ac Voltage Rating, 1A Current Rating, Автоматический выключатель

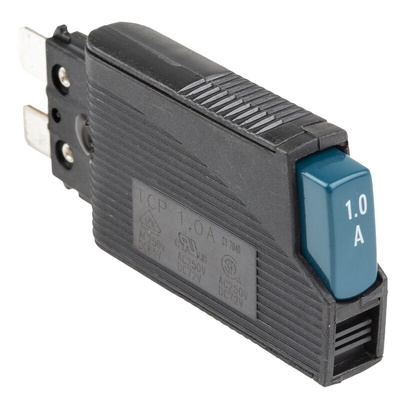

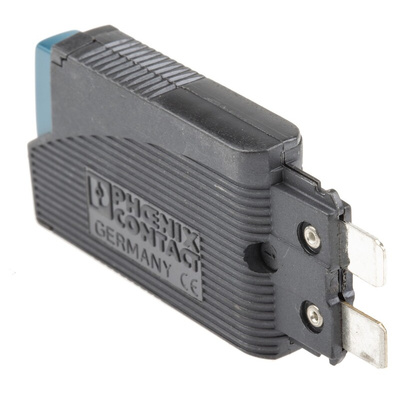

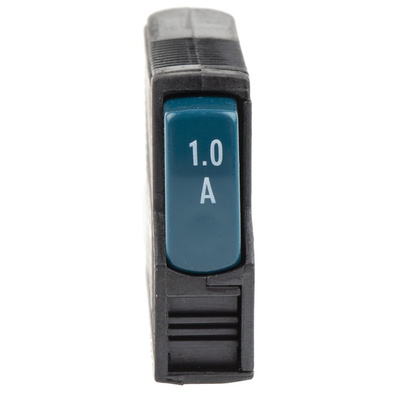

Phoenix Contact TCP Thermal Circuit Breaker

The compact TCP range of miniature thermal circuit breakers from Phoenix contacts have an integrated switching function which enables instant re-closure to ensure the availability of the system.

Features and Benefits

• IP40 rating
• Slow blow fuse
• Only 8.2mm wide
• Re-closable
• Available with nominal current levels from 0.1 to 10 A
• Screw or spring cage connections used as a basic terminal block

Note

When mounted in rows, the nominal device current can be limited to just 80% or must be over dimensioned accordingly.

Phoenix Contact Thermal Circuit Breaker, 2.5kV Surge Voltage, Polyamide Insulation - TCP 1A - 0712194

Looking for a reliable and reusable breaking solution for your circuits? Try this thermal magnetic circuit breaker from Phoenix Contact. It uses an electromagnet and bimetallic strips to trip the connected circuit quickly in case of an overload, keeping you safe and your equipment protected.
An integrated on-off switching function lets you reset the breaker immediately after a fault is cleared. This helps reduce downtime and, by eliminating the need for disposable fuses, generates less waste.
As it plugs directly into both screw-type and spring-cage-type terminal blocks, this unit is a practical option for use in a wide variety of industrial circuit-breaking applications. With an ambient temperature range of -20°C to +60°C, you can be assured that it functions efficiently in harsh environments.

Features & Benefits

• UL-94 flammability rating of V0 certifies the spread of flames is limited in case of fire
• Width of just 8.2mm for use in setups with limited space
• Rated surge voltage of 2.5kV, so protects users and equipment against harmful electrical surges
• High-performance polyamide insulation is electrically resistant for safe handling

Phoenix Contact Circuit Breakers

Datasheet 712194
