2861276, Phoenix Contact IB IL 24 DO 4-PAC Series Terminal Block, 24 V dc, Клеммный блок

IB Inline Terminal

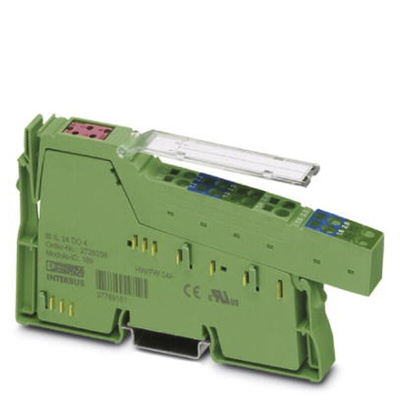

Phoenix Contact Inline Digital Output Terminal, 24V DC, 4 Outputs - IB IL 24 DO 4-PAC - 2861276

Effectively transmit digital output signals from an inline station using this terminal from Phoenix Contact. It features four outputs so you can use it for multiple transfers simultaneously, and the terminal points are conveniently numbered to avoid false connections. A spring cage connection maintains a secure link, while a 500kBit/s transmission speed means it's reliable for rapid data transfer. For quick diagnosis and increased safety, LED signals let you know the status of the device and alert you to short circuits and overloads.
This terminal is DIN rail mounted, which makes it easy to install and access, and its slim width of 12.2mm means it takes up minimal space. It's compatible with a wide range of fieldbus systems and Ethernet networks, making it a versatile choice. Use it to remotely manage your communication systems and factory automation tasks.

• Low weight of 66g for reduced strain on a panel
• IP20 (ingress protection) rating for safe manual handling
• Operating temperature range between -25°C and +55°C for use in demanding environments
• Minimal power consumption of 0.33W to conserve energy

Phoenix Contact System

Inline terminal - IB IL 24 DO 4-PAC

Brochure - I/O Systems for the Control Cabinet

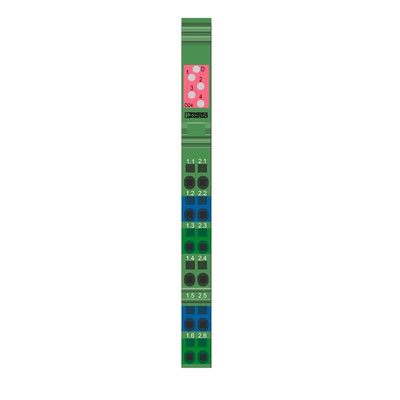

Line Drawing - 2861276

User Manual - 2861276
