2862835, Phoenix Contact IB IL 24 DI 32/HD-PAC Series Terminal Block, Клеммный блок

IB Inline Terminal

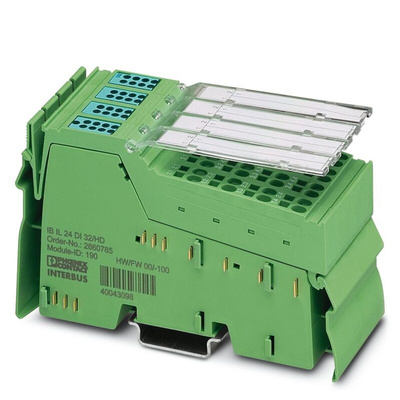

Phoenix Contact Inline Digital Input Terminal Block, 32 Channel, 24 V - IB IL 24 DI 32/HD-PAC - 2862835

This inline terminal block from Phoenix Contact feeds a voltage of 24 V into a main electrical circuit. Its design is compatible with inline stations and, as it has 32 channels, it provides a high packing density on a printed circuit board (PCB).
The unit is supplied with a plug and labelling fields and has diagnostic and status indicators that clearly show when an electrical error occurs. The terminal is protected against polarity reversal and surges in voltage, which means it's not affected by changes in power supply levels. Spring cage connection technology offers a stable and long-term connection for conductors, even in vibrating conditions.
Due to the reliability of its spring-cage connectors, this terminal block is suitable for applications in the wind energy and rail industries. It's been Atmosphere Explosible (ATEX) approved as safe to use in hazardous or explosive atmospheres.

• Supply voltage range of 19.2 V DC to 30 V DC
• Input voltage of 24 V DC
• Dimensions of 119.8 (H) x 48.8 (W) x 71.5 mm (D)
• Weight of 185 g
• 32 digital inputs
• Includes diagnostic and status indicators
• Operating temperature range of -25°C to +85°C
• DIN rail mounting type
• Single wire connection method
• Terminal block accessory type

Phoenix Contact System

Inline terminal - IB IL 24 DI 32/HD-PAC
