2967989, Phoenix Contact Solid State Relay, Through Hole, 6 V dc Control, Реле

Phoenix Contact PLC-RSC Series

PLC Interface single- and double-pole relays, and opto-couplers, having the same profile. This allows the modules to be installed in any configuration with a common bridging system and using the same accessories. The V8 adapter connects 8 relays or opto-couplers to a 15 way D-SUB cable.

Features and Benefits

• Relays and opto-couplers for inputs and outputs with "pluggable" switching devices
• Four bridging slots to reduce wiring; bridging of up to 80 modules is possible
• Screw terminal connections
• LED indicators and diodes for coil suppression
• 250V versions have a switched power rating of 1500VA
• Mechanical life (relays) 1 x 107 operations
• Wide range of accessories also available

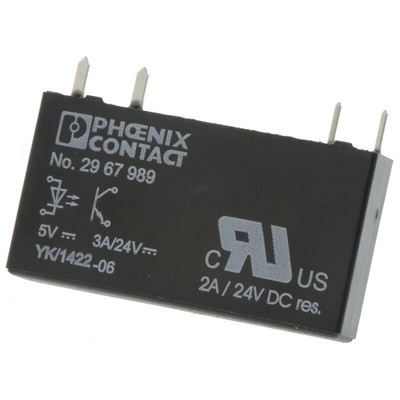

Phoenix Contact Miniature Solid-state Relay - OPT- 5DC/24DC/2 - 2967989

Control the opening and closing of electrical circuits on a printed circuit board (PCB) with this relay from Phoenix Contact. Its four bridging slots let you bridge up to 80 modules.
To save on space, the hard-wearing unit can be tightly packed in rows together with other relays and optocouplers of the same profile. Its spring-cage, push-in terminals easily accept even very small conductors without the need for tools. The relay's user-friendly wiring system needs low insertion force. You can remove the conductors easily with a simple push on the release button.
As this relay is resistant to shock and vibration, it's a good choice for use with electrical circuit boards in industrial machinery and equipment. It's components are also washproof, so you can clean it without worries. This unit meets EN 50178 standards, meaning it's safe to use in power installation applications.

• Dimensions of 28 (H) x 5 (W) x 15 mm (D)
• Isolation voltage of 2.5 kV
• Maximum forward voltage of 5 V
• Maximum input current of 9 mA
• Operating temperature range of -25°C to +60°C
• DIN rail mount type
