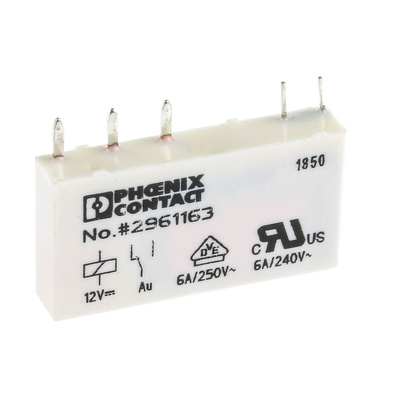

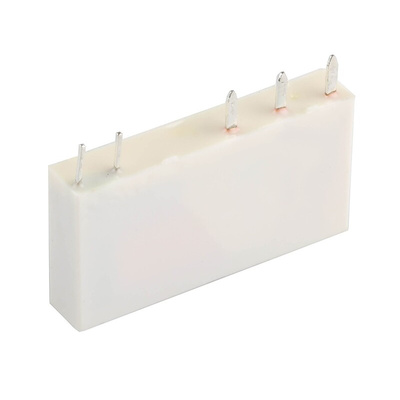

2961163, Phoenix Contact SPDT Relay Module, PCB Pin Terminal , PCB Mount

Phoenix Contact REL-MR Series

REL-MR- 12DC/21AU

The REL-MR- 12DC/21AU SPDT (Single pole, double throw), plug-in miniature power relay has an input voltage of 12 Vdc and power contact. The non-latching relay is part of the REL-MR range and has been designed to be assembled in rows with zero spacing.

Features and Benefits

• Up to RT III protection meaning that the relay is capable of undergoing a washing process to remove any flush residue without leakage of flux or washing product.
• Operating temperature of -40°C to +85°C
• Safe isolation between coil and contact according to DIN EN 50178
• Power contacts up to 6 A

Typical Applications

The SPDT relay is a commonly used when there is a need to select between two power sources, swapping inputs or where you need two circuits going to one place.

Datasheet 2961163
