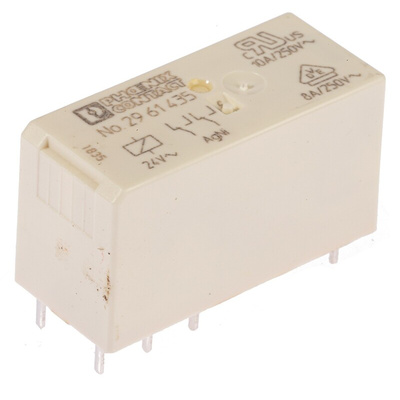

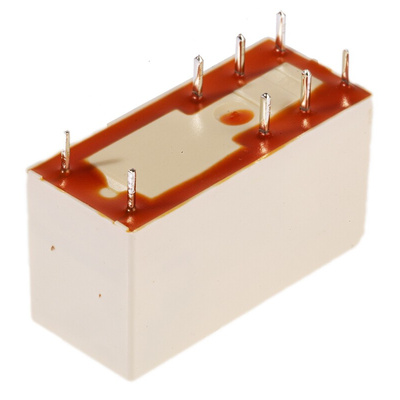

2961435, Phoenix Contact PCB Mount Power Relay, 24V ac Coil, 8A Switching Current, DPDT

Phoenix Contact Power Relay, 18.7 to 37.2V AC Input Voltage Range, 14.85g Weight - REL-MR- 24AC/21-21 - 2961435

Looking for a device to manage electrical loads in your circuit? Hand over control to this power relay from Phoenix Contact. The unit's input voltage range of 18.7 to 37.2V AC means it's just what you need for low-power applications. It's an energy-conscious choice as its low power dissipation of just 0.77W keeps energy waste low. To ensure reliable electrical performance, silver-nickel alloy contacts are highly conductive and corrosion-resistant.
You can count on this relay to be with you through the long haul thanks to its mechanical lifespan of 10 million cycles. As it tips the scales at just 14.85g, it puts minimal strain on your equipment. For installation in a snap, you can mount this product in any position on your PCB using its plug and solder connection.

Features and Benefits

• Compact dimensions of 29 (H) x 12.7 (W) x 15.7mm (D) to make the most of board space
• Broad operating temperature range between -40°C and +85°C for use in harsh industrial conditions
• Meets EN 60068-2-60 standards for safe use with corrosive gases
• Complies with IEC 60664 standards for insulation in low-voltage equipment

Typical Applications

The DPDT relay is a commonly used when there is a need to select between two power sources, swapping inputs or where you need two circuits going to one place.

Datasheet 2961435

Line Drawing - 2961435
