2964364, Phoenix Contact DEK-OE- 24DC/ 5DC/100KHZ-G Series Solid State Relay, Оптопара

Phoenix Contact Opto-Couplers with Solid State Relay Output

These DIN rail mount opto-couplers from Phoenix Contact provide an ideal means of interfacing on/off signals to, or from, equipment, whilst providing electrical isolation between their own inputs and outputs. In other words, these may be used to protect equipment by electrically isolating its inputs, outputs, or both. The dc/ac and ac/dc versions also provide a means of interfacing (whilst isolating) ac and dc control voltages.

Features and Benefits

• Dc in/Dc out, Dc in/Ac out and Ac in/Dc out versions available
• Versions with switching speeds up to 100kHz available
• 2.5kVac input to output isolation
• LED status indication
• Module width 6.2mm
• Operating temperature range: -20 to +60°C

Standards

IEC 60 664, IEC 60 664A, DIN VDE 0110

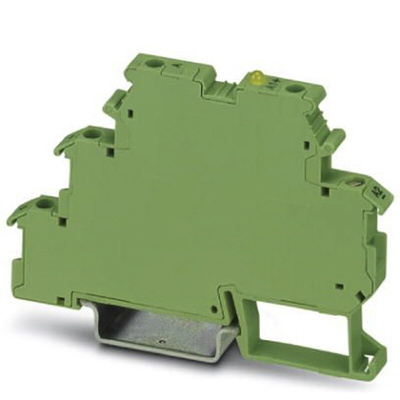

Phoenix Contact Optocoupler, LED Status Indicator - DEK-OE- 24DC/ 5DC/100KHZ-G - 2964364

Install this optocoupler from Phoenix Contact on your control panel to isolate and safely operate a piece of equipment. It uses a solid-state relay for fast electrical switching at speeds of 1μs (microsecond). Thanks to its integrated input and output circuits, it protects devices from current surges and differing voltages. The capacitor is situated on the input side to reduce signal interference for more reliable transmission..
This optocoupler is designed to fit securely on a DIN rail, so it's compatible with a range of systems. It also uses a simple modular design and has labelled contact points for easy set-up. An LED (light-emitting diode) light provides a clear visual indicator of the status of the device for ease of use. You can use it across a wide operating temperature range of -20°C to +60°C, making it suitable for use in harsh industrial environments.

Features & Benefits

• Wide output voltage range between 4V DC and 18V DC for compatibility with a variety of devices
• Compact dimensions of 80 (height) x 6.2 (width) x 56mm (depth) to take up minimal space on a distribution board
• Green case colour for quick identification where multiple contact blocks are in use
