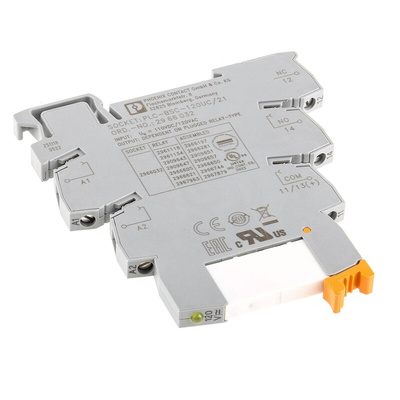

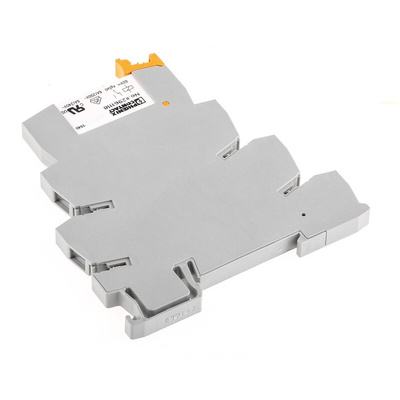

2966197, Phoenix Contact PLC-RSC-120UC/21 Series Interface Relay, Chassis Mount, 120V ac Coil, SPDT, 1-Pole

A 6.2 mm PLC interface relay module designed to be mountable on DIN rail NS 35/7.5. Featuring a basic terminal block with screw connection and a plug-in miniature power relay.

Phoenix Contact PLC-RCS Relays Series

This range of compact PLC relays from Phoenix Contact gives you a great choice of easy connection technology. The electromechanical relays act as the interface between your automation equipment and system peripherals.

Features and Benefits:

• Saves space on the DIN rail
• Cost-effective
• Use the same electromechanical relay module design for both AC and DC switching voltage
• DIN rail mounting
• SPNO and SPDT models available
• Yellow LED operating voltage display
• Free-wheeling diode Damping diode
• Dimensions 94 x 80 x 6.2 mm

Typical Applications:

The PLC relays are used in many different applications not limited to power amplification, electrical isolation or for using for voltage adjustment of frequency varying voltage levels.

Phoenix Contact PLC-RSC-120UC/21 Series Interface Relay, Silver Alloy, SPDT - 2966197

This Phoenix Contact interface relay is a crucial component in the automation, electronics, electrical, and mechanical industries. With a coil voltage of 120VAC and SPDT contact configuration, this relay offers high quality performance. The PLC RSC 120UC/21 series ensures reliability and efficiency in various applications.

Features & Benefits

• Chassis mount relay ideal for industrial settings
• Silver alloy contacts material for durability and conductivity
• Screw terminal type for secure connections
• 1A switching current capacity for versatility
• 250V switching voltage for compatibility with different systems
• High traffic design ensures consistent operation

Applications

• Ideal for automation systems requiring reliable switching
• Used in electronics to control power circuits effectively
• Suitable for electrical control panels for efficient operation
• Perfect for mechanical equipment requiring precise control
• Used in various industrial settings for seamless performance

What is the purpose of the PLC-RSC-120UC/21 Relay Module?

The module serves as an interface between control systems and external devices. It allows you to switch loads using the relay’s contact.

Is there anything specific to consider when using the PLC-RSC-120UC/21?

For voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules, a separating plate (PLC-ATP) must be installed.

How do I mount the PLC-RSC-120UC/21 Relay Module?

The module is designed for DIN rail mounting on NS 35/7.5 rails.
