Phoenix PLC-RPT Series Contact Screw Terminal
The Phoenix PLC-RPT Series of relay modules features terminal blocks with push-in connection and plug-in miniature relay, suitable for DIN-rail mounting.
Features and Benefits
- With the use of a v8 adapter, this relay module offers efficient connection to system cabling
- The module offers safe isolation between the coil and contact
- Functional plug-in bridges
- Operating temperature range of -40 ºC to 60 ºC
What is a relay module used for?
A relay is a switch that can be turned on and off, determining whether the current can pass through. Relay modules are used to control and protect against emergency conditions in applications such as modern power, large radio-electronic, electrophysical and X-ray installations.

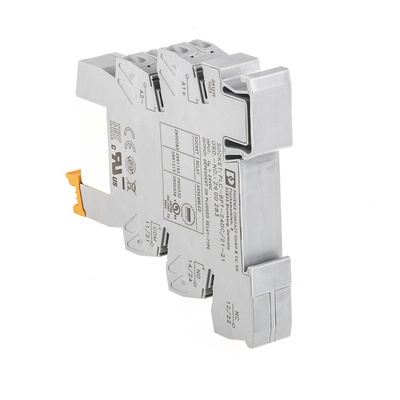

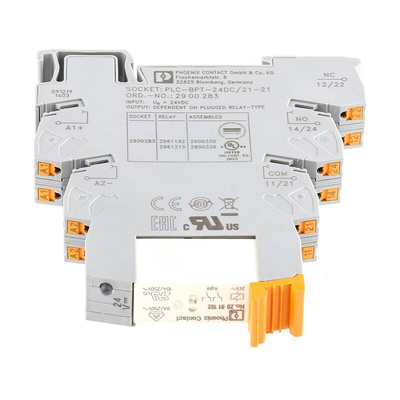

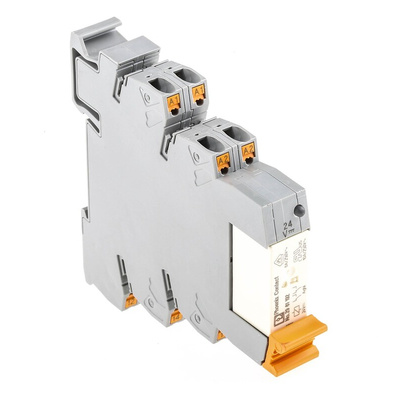

Phoenix Contact Interface Relay Module, Screw Terminal, DPDT - PLC-RPT- 24DC/21-21 - 2900330
This interface relay module from Phoenix Contact features a terminal block with a push-in connection and plug-in miniature relay. It's suitable for DIN rail mounting and works together with a V8 cabling adaptor for an efficient connection to system cabling. You can use it to control automated processes, where it provides safe isolation between the cable and the coil.
The module's DPDT (double pole, double throw) contact configuration makes it a versatile switching device that can connect two inputs to four outputs. Its screw terminals let you make secure connections quickly and simply.
The relay is sealed, so you can be assured that it's wash-tight. Performance is easy to monitor thanks to the yellow LED (light-emitting diode) operating voltage display. PLC relays of this type are used to control automated processes in applications such as large radio-electronic, electrophysical and X-ray installations while protecting them against unexpected current surges.
• Coil voltage of 24 V DC
• Silver alloy contact material
• Dimensions of 94 (length) x 80 (height) x 14 mm (depth)
• Input current of 18 mA
• Life of 30,000,000 cycles
• Maximum input voltage of 24 V DC
• Operating temperature range of -40°C to +60°C
• Switching current of 10 A
• Turn-off time of 10 ms
• Turn-on time of 8 ms
Relay Module - PLC-RPT- 24DC/21-21EU ConformityUK Conformity| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
