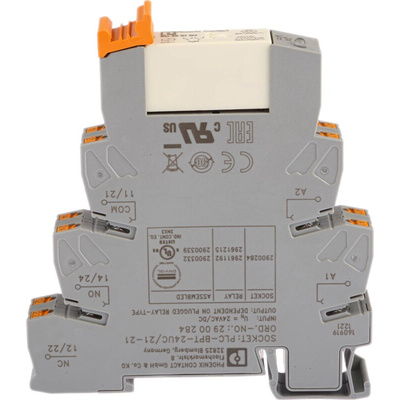

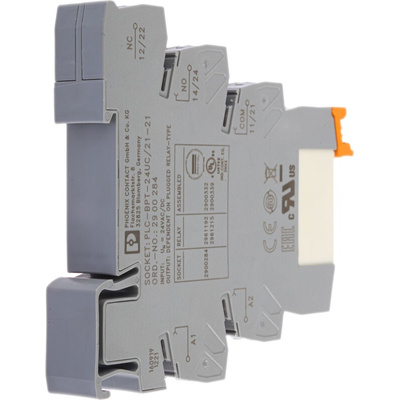

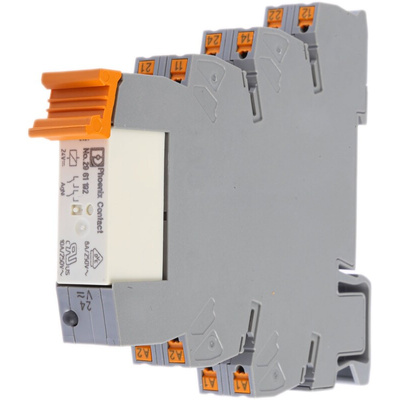

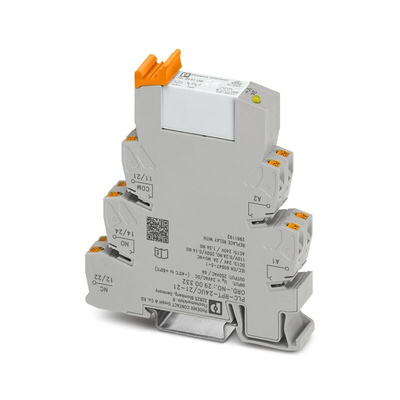

2900332, Phoenix Contact PLC-RPT- 24UC/21-21 Series Interface Relay, DIN Rail Mount, 24V ac/dc Coil, DPDT, 2-Pole

Phoenix PLC-RPT Series Contact Screw Terminal

The Phoenix PLC-RPT Series of relay modules features terminal blocks with push-in connection and plug-in miniature relay, suitable for DIN-rail mounting.

Features and Benefits

• With the use of a v8 adapter, this relay module offers efficient connection to system cabling


• The module offers safe isolation between the coil and contact


• Functional plug-in bridges


• Operating temperature range of -40 ºC to 60 ºC

What is a relay module used for?

A relay is a switch that can be turned on and off, determining whether the current can pass through. Relay modules are used to control and protect against emergency conditions in applications such as modern power, large radio-electronic, electrophysical and X-ray installations.

Phoenix Contact PLC-RPT- 24UC/21-21 Series Interface Relay, Silver Alloy, DPDT - 2900332

This Phoenix Contact interface relay with 24VAC/DC Coil voltage is a versatile component designed for automation, electronics, electrical, and mechanical applications. With its DPDT switch functionality and high quality silver alloy contact material, this relay offers reliable performance in various industrial settings.

Features & Benefits

• Easily install the relay on a DIN rail for efficient setup
• Capable of handling up to 6A of switching current, ensuring robust operation
• Facilitates secure and convenient wiring connections
• With a life expectancy of 30,000,000 cycles, this relay is built to last
• Industrial grade relay with RT III protection for added safety and reliability

Applications

• For use in automation systems requiring precise control
• Ideal for electronic equipment that demands high switching currents
• Perfect for industrial machinery where reliable switching is critical

Can it handle high operating temperatures?

Yes, this interface relay can operate in temperatures ranging from -40°C to +60°C.

Will it fit standard DIN rail systems?

Yes, this relay is designed for seamless mounting on DIN rails.

Is it suitable for industrial applications?

Yes, this relay is an excellent choice for industrial machinery and automation systems.

Can the coil voltage be adjusted?

No, the coil voltage is fixed at 24VAC/DC for optimal performance.

Is this relay suitable for high-current applications?

Yes, with a switching current of 6A, this relay is perfect for handling high-current scenarios.

Relay Module - PLC-RPT- 24UC/21-21

Instruction Sheet - 2900332

Line Drawing - 2900332
