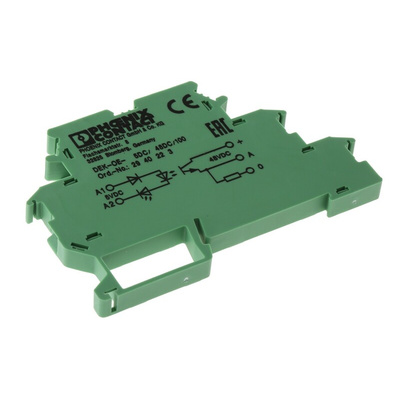

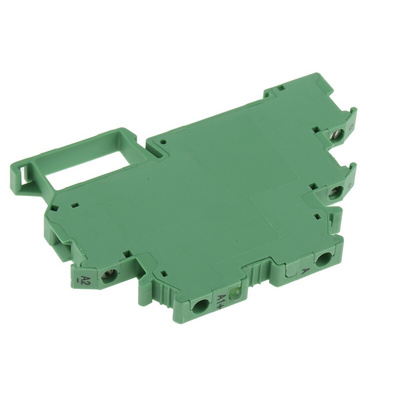

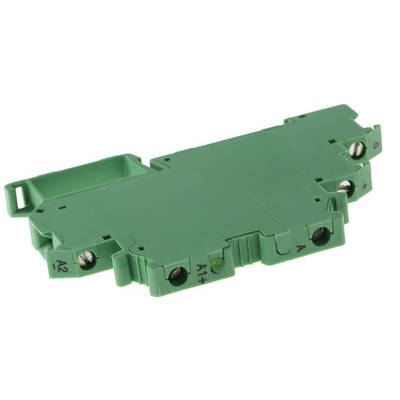

2940223, Phoenix Contact DEK-OE- 5DC/ 48DC/100 Series Solid State Interface Relay

Phoenix Contact DEK-OE Solid State Relay Terminal Blocks

Solid-state relay terminal blocks from the Phoenix Contact interface relay module series, with integrated input circuit, output protective circuit and status indicator. Mountable on DIN rail NS 35/7,5, reducing space these units are 6.2mm wide and offer labelling and mounting with user-friendly modular terminal blocks.

This range of interface modules gives you a great choice of easy connection technology. The terminal blocks act as the interface between your automation equipment and system peripherals.

Features and Benefits:

• EB-DIK insertion bridges
• Zero voltage switch at AC output
• Wear-free switching of up to 24 V DC/10 A or 240 V AC/800 mA
• Actuator version available
• Yellow LED status indicator
• 6.2 x 80 x 56 mm dimensions
• Reverse polarity protection
• Free-wheeling diode protection

Applications:

DEK-OE solid-state relay blocks are used in many different applications not limited to power amplification, electrical isolation or for using for voltage adjustment of frequency varying voltage levels.

DEK-OE- 5DC/ 48DC/100\t2940223

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Solid-state relay terminal block - DEK-OE- 5DC/ 48DC/100 - 2940223
