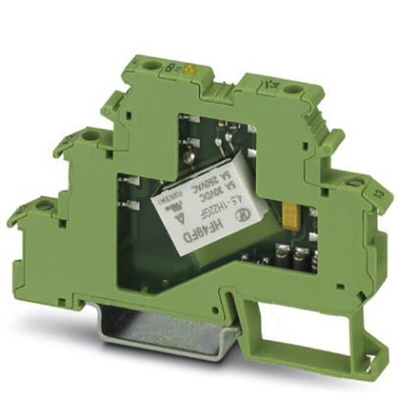

2941170, Phoenix Contact DEK-REL-5/O/1 Series Interface Relay, DIN Rail Mount, 5V ac/dc Coil, SPST, 1-Pole

Phoenix Contact DEK-REL Series of Relay Terminal Blocks

A series of interface relay blocks containing soldered in miniature relays, for small to medium loads. Designed to be mountable on DIN rail NS 35/7.5, they are 6.2mm wide providing up to 73% more space on the rail as N terminal blocks are no longer needed. Input voltage in this series ranges from 5 V ac/dc to 24 V ac/dc, with a 2-layer contact with hard gold plating for universal applications from 1 mA to 5 A continuous current.

The range of DEK-REL preassembled relay units from Phoenix Contact give you a great choice of easy connection technology. The solid-state relays act as the interface between your automation equipment and system peripherals.

Features and Benefits:

• Wiring reduced
• Integrated input circuit
• 2 kVrms electrical isolation between input and output
• Up to 73% more space
• Yellow LED operating voltage display
• AgNi, hard gold-plated contact

Applications:

DEK relay terminal blocks are used in many different applications not limited to power amplification, electrical isolation or for using for voltage adjustment of frequency varying voltage levels.

DEK-REL-5/O/1\t2941170

Relay Module - DEK-REL- 5/O/1 - 2941170
