1680539, Phoenix Contact PROT Circular Connector Seal Screw Plug diameter 13.5mm for use with Unoccupied M12 Sockets

Phoenix Contact Circular Connector Seal, 15mm Diameter, 0.4Nm Tightening Torque - PROT-M12 - 1680539

Do you have a gap in your sensor box? Fill it in a snap with this circular connector seal from Phoenix Contact. Its M12 thread quickly fits into the unoccupied socket in your actuator cabinet or flush-type connector to stop debris from sneaking into your equipment. Once in place, this component seals your system up to an IP67-rated standard, meaning it's dust-proof and water-tight. By blocking those contaminants in their tracks, you can prevent corrosion and keep your network running smoothly.
The durable PA body material means this plug also fully insulates the connection to protect you from dangerous shocks during handling. Plus, it's flame-resistant and self-extinguishes in 10 seconds, helping to minimise the spread of fire. Thanks to these robust properties, this product is an ideal choice for using with your industrial manufacturing, automation and processing machinery.

Features & Benefits

• Comes in a pack of 5, so you have plenty in supply to fill multiple holes
• Light 0.826g weight per plug doesn't exert any strain on your panel
• Performs reliably in demanding temperatures from -40°C to +85°C

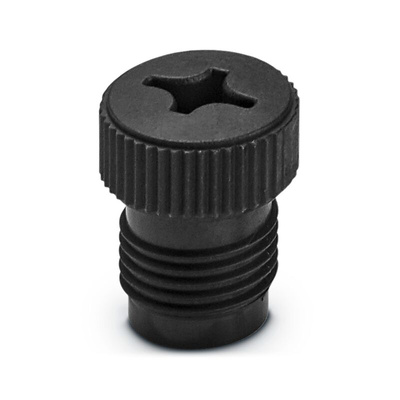

Screw plug - PROT-M12 - 1680539

Line Drawing - 1680539
