2744018, Phoenix Contact SUBCON-PLUS 9 Way 35 ° Cable Mount D-sub Connector Plug, Разъем

Phoenix Contact SUBCON-PLUS RS-485 D-Sub Connectors

SUBCON-PLUS 9 position field bus D-sub connectors with two cable entries and a screw terminal block for each cable enabling fieldbus systems to be built with RS-485 interfaces. The terminal blocks can be placed in the upper or lower part of the connector housing allowing cable entry from the left or right. These SUBCON-PLUS field bus RS-485 d-sub connectors have a high transmission speed, a high level of EMC with metallized ABS housings for EMI shielding and accept a cable cross section range of 6 to 10mm²
Stock number 648-3489 is a 9 way d-sub socket with two 35° angled cable entries for Modbus, Modbus-PLUS, BITBUS, ARCNET, MULT/MININET(B&R), SYSTEM 2003 (B&R), P-NET
Stock number 324-9371 is a 9 way d-sub socket with two 35° angled cable entries for SUCONET K1, K2 (EATON/Moeller), S-BUS (Saia) and J-BUS (Merlin Gerin)
Stock number 324-9400 is a 9 way d-sub socket with two 35° angled cable entries for Modbus and CEGELEC
Stock numbers 801-8933 (pin) and 801-8964 (socket) are 9 way d-sub connectors with two 35° angled cable entries for universal assignment.
For short mounting screw see stock number 801-8961
For screwdriver see stock number 390-9663

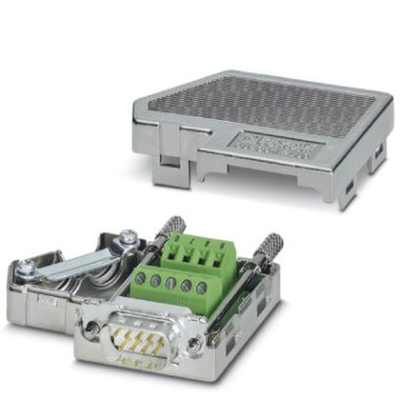

Phoenix Contact D-Sub Connector Plug, 9 Contacts, 60mm Length - SUBCON-PLUS 9/M - 744018

This nine-pin male D-sub connector plug from Phoenix Contact is an essential component in the building of fieldbus systems with RS-485 interfaces. It provides a connection route for the two cables required for set-up, channelling their signals to screw terminal blocks for faster transmission speeds and a clearer link.
This unit is made of ABS (acrylonitrile butadiene styrene), which is metal-plated for impact resistance and therefore suitable for external use. The plating also prevents EMI (electromagnetic interference) and makes it safe for use with other electrical components.
You can place terminal blocks on the upper or lower parts of the connector housing, allowing flexible cable entry depending on your PCB (printed circuit board) set-up. This connector plug can also be easily installed or removed thanks to knurled screws, which can be fastened and loosened by hand.

• Compact dimensions of 60 (length) x 16 (width) x 44mm (depth)
• Operating temperature range of -20°C to +75°C for use in challenging environments
• Straightforward installation by cable mounting
• Screw termination type for secure connections
• Weight per piece of 60.7g, so won't strain your system
• IP20 (ingress protection) rating indicates the unit is touch-proof and resistant to dust and objects up to 12mm in size

BUS connectors

Rewireable bus interface connectors suitable for Bitbus, CAN-Bus, Interbus-S (Fieldbus) and Profibus systems. Compact and high quality, the 9-pole sub-D housings are available in bus node or bus termination versions and are colour-coded for easy identification. Service nodes are also available for CAN-Bus and Profibus systems, allowing online programming and repair. Each interface comes with detailed assembly instructions and mounting accessories.

Available in versions with horizontal or vertical cable outlets
Fast and reliable connection via screw terminals on the PCB
Bus terminations include SMT termination resistors
Colour-coded bodies aid installation and repair
Safe ESD protection thanks to fully insulated housings
Supplied with reliable crimp strain relief

D-SUB bus connector - SUBCON-PLUS 9/M
